REAR OIL SEAL REPLACEMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0110h8800900

1.  Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D] (MT).) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL] (AT).)

2.  Remove the flywheel (MT) or drive plate (AT). (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5] (MT).) (See CLUTCH UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See DRIVE PLATE REMOVAL/INSTALLATION [SJ6A-EL] (AT).)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

amxuuw00004304

1	Rear oil seal (See Rear Oil Seal Removal Note.) (See Rear Oil Seal Installation Note.)

Rear Oil Seal Removal Note

1.  Remove the rear oil seal lip using a utility knife.

2.  Using a screwdriver wrapped in a cloth, remove the rear oil seal being careful not to damage the sealing surface.

amxuuw00004305

Rear Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new rear oil seal.

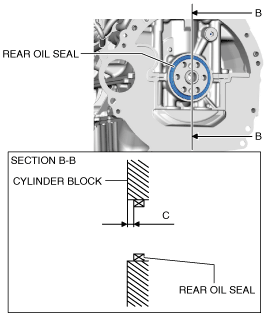

2.  Insert the rear oil seal into the cylinder block by hand.

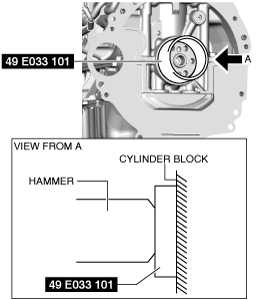

3.  Tap the oil seal in evenly using the SST and a hammer.

amxuuw00004306

amxzzw00003016
