FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION

id041200801200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (With AT vehicles) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (With MT vehicles) (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D].)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Parking brake lever (See PARKING BRAKE LEVER REMOVAL/INSTALLATION.)

(8)  Center under cover. (With center under cover) (See CENTER UNDER COVER REMOVAL/INSTALLATION.)

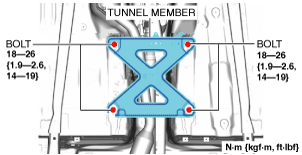

3.  Remove the bolt.

amxuuw00005105

4.  Remove the tunnel member.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.)

amxuuw00005106

1	Bolt
2	Rear parking brake cable
3	Front parking brake cable, equalizer
