OIL SEAL (OIL PUMP) REPLACEMENT [SJ6A-EL]

id051311710500

1.  Remove the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

2.  Remove the torque converter. (See TORQUE CONVERTER REMOVAL/INSTALLATION [SJ6A-EL].)

3.  Remove the oil seal from the oil pump body using the SSTs.

ardjjw00004915

Caution
•  Do not to damage the bushing on the oil pump body.

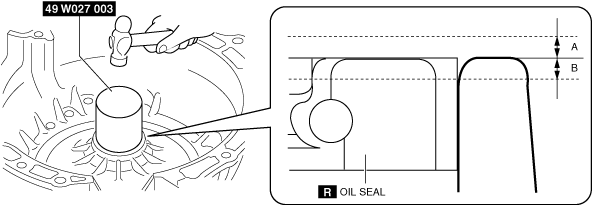

4.  Using the SST and a hammer, install the new oil seal to the oil pump body.

amxzzw00004472

A: 0.2 mm {0.008 in}
B: 0.2 mm {0.008 in}

5.  Coat the lip of the oil seal with grease.

6.  Install the torque converter. (See TORQUE CONVERTER REMOVAL/INSTALLATION [SJ6A-EL].)

7.  Install the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)

8.  Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [SJ6A-EL].)
