COOLING DUCT REMOVAL/INSTALLATION

id071100808000

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

(8)  Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

3.  Remove the urethane seal.

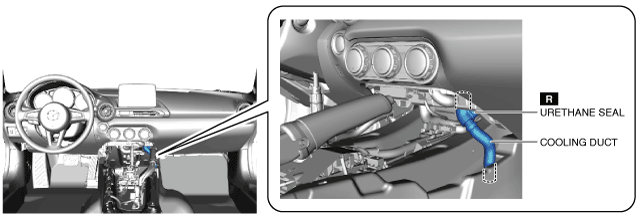

amxuuw00003912

4.  Remove the cooling duct.

amxuuw00003913

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

(8)  Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(9)  Dashboard bracket (See DASHBOARD REMOVAL.) (See DASHBOARD INSTALLATION.)

3.  Remove the urethane seal.

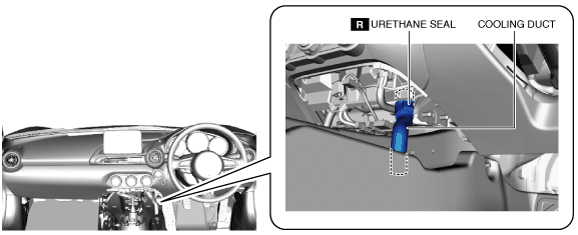

amxzzw00003128

4.  Remove the cooling duct.

amxzzw00003129

5.  Install in the reverse order of removal.
