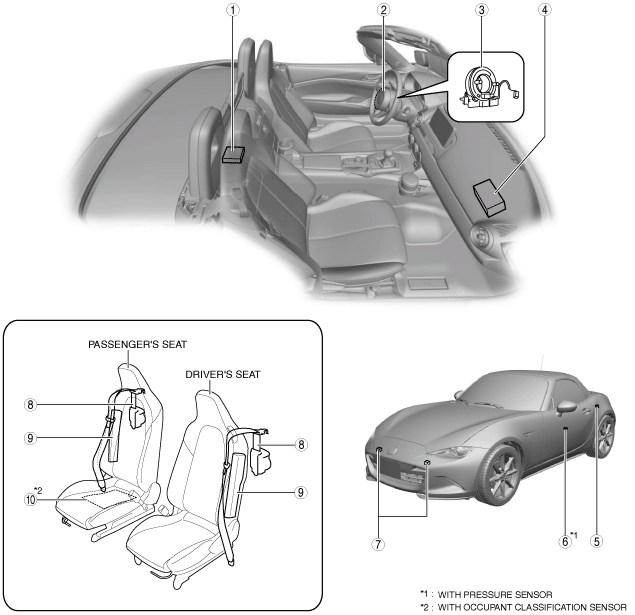

AIR BAG SYSTEM LOCATION INDEX

id081000805300

amxzzw00003051

1	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.) (See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION).) (See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA).)
2	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
3	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.) (See CLOCK SPRING ADJUSTMENT.) (See CLOCK SPRING INSPECTION.)
4	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
5	Side air bag sensor (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.)
6	Pressure sensor (See PRESSURE SENSOR REMOVAL/INSTALLATION.)
7	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)
8	Pre-tensioner seat belt (See SEAT BELT REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
9	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
10	Occupant classification sensor (See OCCUPANT CLASSIFICATION SENSOR REMOVAL/INSTALLATION.) (See OCCUPANT CLASSIFICATION SENSOR CALIBRATION.) (See OCCUPANT CLASSIFICATION SENSOR INSPECTION.)
