VERIFY BCM DTCs AGAIN
• Clear the DTC for the BCM using the M-MDS.
• Open/close the trunk.
• Retrieve the BCM DTCs using the M-MDS.
• Is the same Pending DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
Go to Step 7.
|
|
2
|
INSPECT TRUNK LID LATCH SWITCH CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Disconnect the trunk lid latch switch connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
3
|
INSPECT TRUNK LID LATCH SWITCH
• Inspect the trunk lid latch switch.
• Is the trunk lid latch switch normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the trunk lid latch and release actuator, then go to Step 6.
|
|
4
|
INSPECT BCM CONNECTOR CONDITION
• Disconnect the BCM connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
5
|

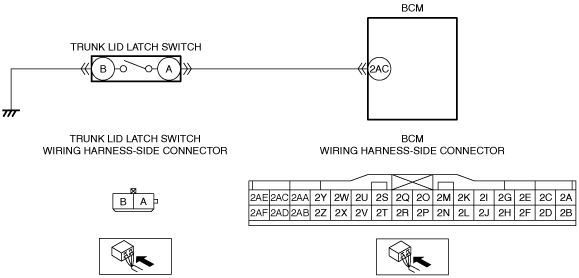

INSPECT TRUNK LID LATCH SWITCH CIRCUIT FOR SHORT TO GROUND
• Verify that the trunk lid latch switch and BCM connectors are disconnected.
• Inspect for continuity between trunk lid latch switch terminal A (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Refer to the wiring diagram and verify whether or not there is a common connector between trunk lid latch switch terminal A and BCM terminal 2AC.
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
6
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery terminal.
• Clear the DTC for the BCM using the M-MDS.
• Open/close the trunk.
• Retrieve the BCM DTCs using the M-MDS.
• Is the same Pending DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the BCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
7
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
