FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000800400
1. Remove the following parts:
- (1) Running light (with running light) (See RUNNING LIGHT REMOVAL/INSTALLATION.)
-
- (2) Active bonnet sensor wiring harness (with active bonnet) (See ACTIVE BONNET SENSOR WIRING HARNESS REMOVAL/INSTALLATION.)
-
- (3) Headlight cleaner hose (with headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
-
- (4) Headlight cleaner cover (with headlight cleaner system) (See HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION.)
-

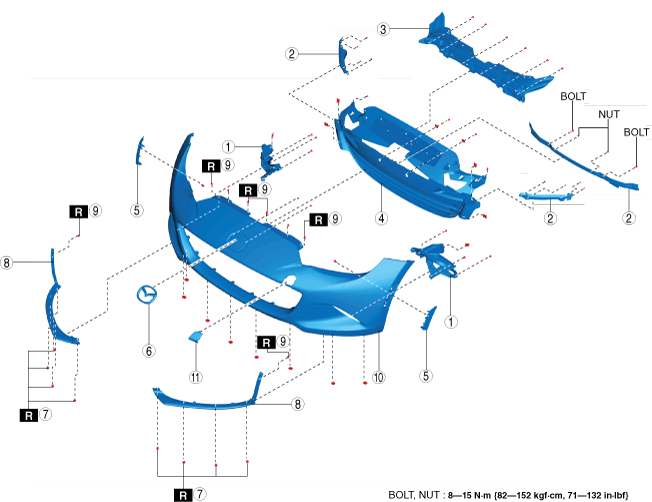

2. Disassemble in the order shown in the figure.
|
1
|
Hole cover (without running light)
|
|
2
|
Set plate (with active bonnet)
|
|
3
|
Grill bracket
|
|
4
|
Radiator grille
|
|
5
|
Cap
|
|
6
|
Mascot
|
|
7
|
Rivet A
|
|
8
|
Airdam skirt
|
|
9
|
Rivet B
|
|
10
|
Front bumper face
|
|
11
|
Towing hook cover
|
3. Assemble in the reverse order of disassembly.
Rivet Removal Note

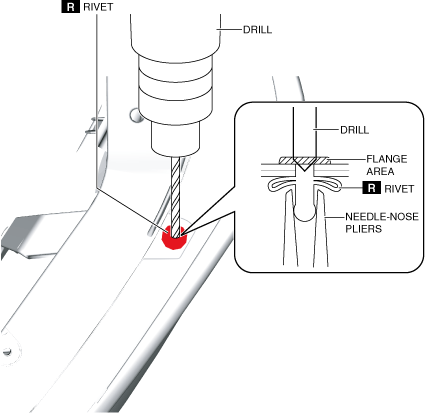

1. Remove the rivet using the following procedure.
- (1) Pinch the rivet pin from the radiator grille side using needle-nose pliers and secure them.
-
- (2) Set the following diameter drill to the drill.
-
-
Drill bit diameter
-
Rivet A: 5.1 mm {0.20 in}
Rivet B: 4.3 mm {0.17 in}
-
Caution
-
• Always use a drill bit of the specified diameter when removing the rivet. If an inappropriate diameter drill bit is used, the front bumper face and the radiator grille may be damaged.
- (3) Gouge off the rivet flange using a drill and remove the rivet.
-
- (4) Remove any rivet shavings from the front bumper face and the radiator grille.
-
