KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400514300

1.  Using the retractable hardtop switch, keep the rear roof open.

amxzzw00004130

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

(2)  Seat (LH) (See SEAT REMOVAL/INSTALLATION.)

(3)  Scuff plate (LH) (See SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5)  Side shelf (LH) (See SIDE SHELF REMOVAL/INSTALLATION.)

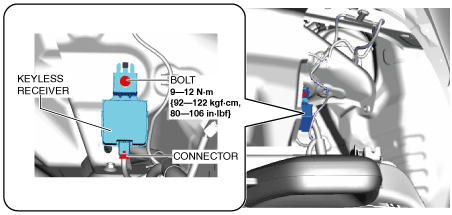

4.  Disconnect the connector.

amxuuw00002592

5.  Remove the bolt.

6.  Remove the keyless receiver.

7.  Install in the reverse order of removal.
