REAR COMBINATION LIGHT SHORT-CORD INSPECTION

id091800025200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Rear combination light short-cord (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.)

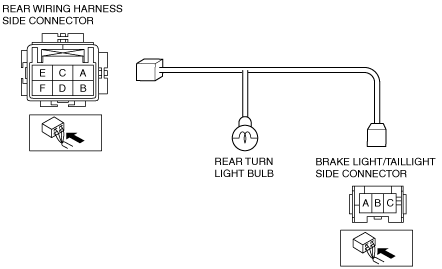

3.  Verify that the continuity between the rear combination light short-cord terminals is as indicated in the table.

amxuuw00003277

amxuuw00003278

•  If not as indicated in the table, replace the rear turn light bulb or the rear combination light short-cord. (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
