RUNNING LIGHT INSPECTION [LED TYPE]

id091800430525

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (with active bonnet) (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

3.  Partially peel back the front mudguard No.1. (without active bonnet) (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

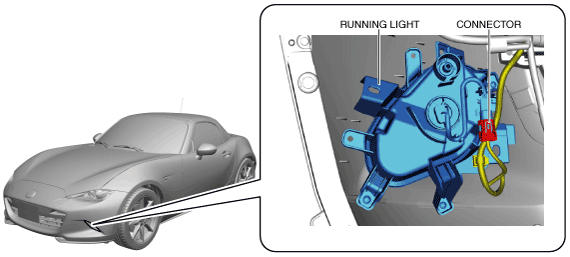

4.  Disconnect the connector.

amxzzw00003181

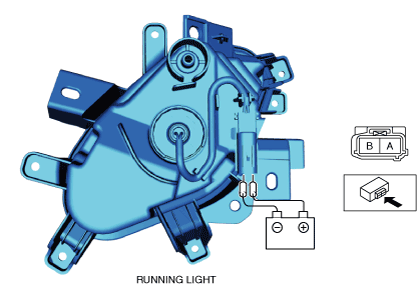

5.  Apply battery voltage to running light terminal A, and connect terminal B to ground.

amxzzw00003182

6.  Verify that the running light is turned on.

•  If the running light does not turn on, replace it. (See RUNNING LIGHT REMOVAL/INSTALLATION.)
