MULTI-INFORMATION DISPLAY

id092200073900

Outline

Function/Construction

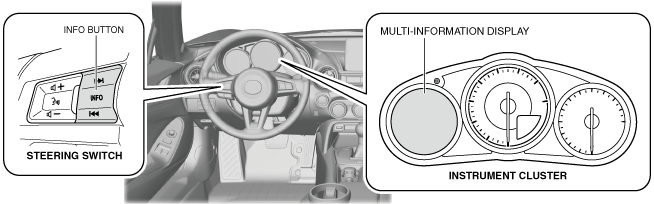

Information displayed in multi-information display

•  The information displayed by the multi-information display is as follows: Refer to the referenced section for details of the displayed information.

amxzzn00001383

Display information	Reference
Adjustable speed limiter display (with adjustable speed limiter)	(See ADJUSTABLE SPEED LIMITER.)
Ambient temperature display	(See AMBIENT TEMPERATURE DISPLAY.)
Blind spot monitoring (BSM) system display (with blind spot monitoring (BSM) system)	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Door-ajar warning indication/trunk lid-ajar warning indication	(See DOOR-AJAR WARNING INDICATION/TRUNK LID-AJAR WARNING INDICATION.)
Engine coolant temperature gauge	(See ENGINE COOLANT TEMPERATURE GAUGE.)
Fuel gauge	(See FUEL GAUGE.)
Instantaneous fuel economy, average fuel economy, remaining distance to empty, direction of vehicle travel (with travel direction display), vehicle speed alarm (with vehicle speed alarm)	(See TRIP COMPUTER INFORMATION SYSTEM.)
Lane departure warning system (LDWS) display (with lane departure warning system (LDWS))	(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
Maintenance monitor	(See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)
Message screen, warning screen, and system operation screen	(See Message screen, warning screen, and system operation screen.)
Odometer/tripmeter	(See ODOMETER/TRIPMETER.)
Pre-set vehicle speed (with cruise control system)	(See CRUISE CONTROL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Retractable hardtop operation display	(See RETRACTABLE HARDTOP.)

Message screen, warning screen, and system operation screen

•  The instrument cluster displays the following screens in the multi-information display.

•  If the instrument cluster receives message display requests from multiple units, the screens are switched at certain intervals.

Screen display	Related unit	Reference/function
	PCM	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See GENERATOR CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See MASTER WARNING LIGHT/MASTER WARNING INDICATION.) (See ON-BOARD DIAGNOSTIC SYSTEM [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0)].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	PCM (brake override system)	(See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
	PCM (vehicle speed alarm)	(See TRIP COMPUTER INFORMATION SYSTEM.)
	PCM (i-stop)	(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
	PCM (i-ELOOP)	(See i-ELOOP [i-ELOOP].) (See MASTER WARNING LIGHT/MASTER WARNING INDICATION.) (See i-ELOOP WARNING LIGHT (AMBER) [i-ELOOP].)
	Start stop unit (keyless entry system/advanced keyless entry system)	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.) (See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
	Start stop unit (push button start system)	(See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].) (See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
	BCM (washer fluid level warning system)	(See WASHER FLUID-LEVEL SENSOR.)
	TCM	(See AUTOMATIC TRANSMISSION WARNING LIGHT.)
	Electric power steering (EPS) control module	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
	Instrument cluster	(See LIGHTS-ON REMINDER WARNING INDICATION.) (See LOW FUEL WARNING LIGHT/LOW FUEL WARNING INDICATION.) (See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).) (See ODOMETER/TRIPMETER.) (See TRIP COMPUTER INFORMATION SYSTEM.)
	Forward sensing camera (FSC)	(See LANE DEPARTURE WARNING SYSTEM (LDWS).) (See LDWS WARNING LIGHT.)
	Instrument cluster	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
	Blind spot monitoring (BSM) control module	(See BLIND SPOT MONITORING (BSM) SYSTEM.) (See BLIND SPOT MONITORING (BSM) WARNING LIGHT.)
	Retractable hardtop control module	(See RETRACTABLE HARDTOP.) (See RETRACTABLE HARDTOP WARNING LIGHT/INDICATOR LIGHT.)
	Connectivity master unit (CMU) (maintenance monitor)	(See MAINTENANCE MONITOR [WITH CENTER DISPLAY].) (See WRENCH INDICATION/WRENCH INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

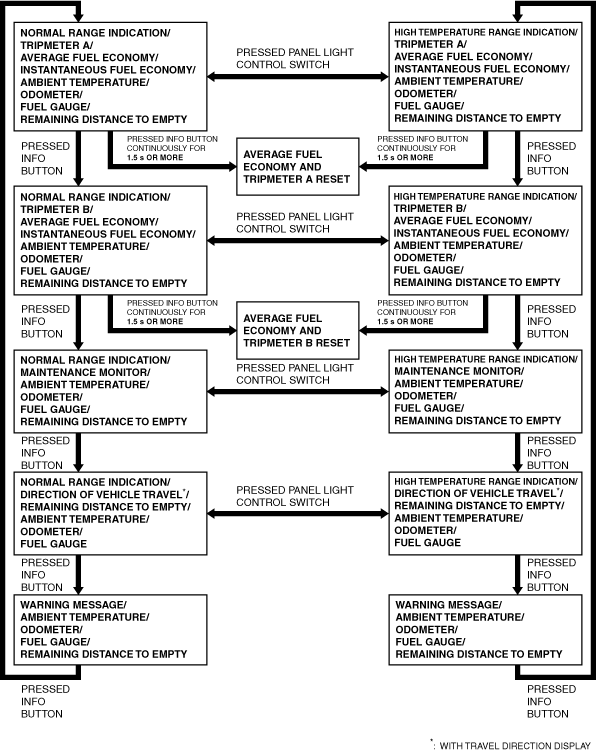

Switching of display content in multi-information display

•  The instrument cluster switches the display content of the multi-information display as follows based on the steering switch operation signal from the start stop unit.

amxzzn00001429

Fail-safe
