FUEL SYSTEM LOCATION INDEX [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0114zg800100

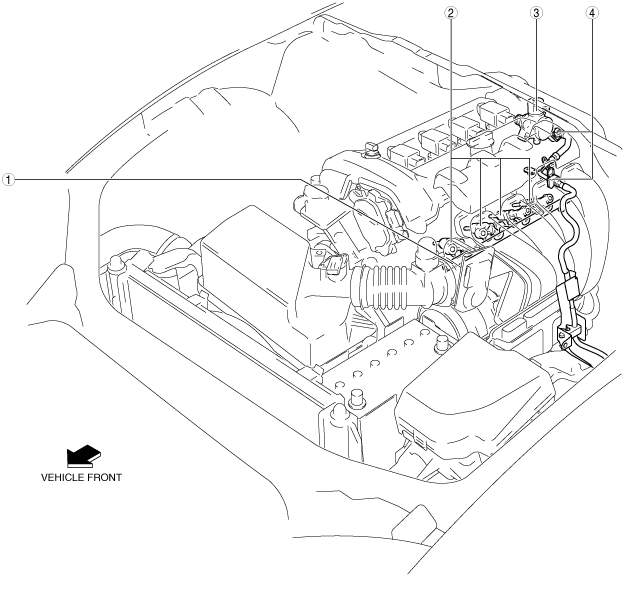

Engine Compartment Side

amxuuw00005157

1	Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See FUEL INJECTOR INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See HIGH PRESSURE FUEL PUMP INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

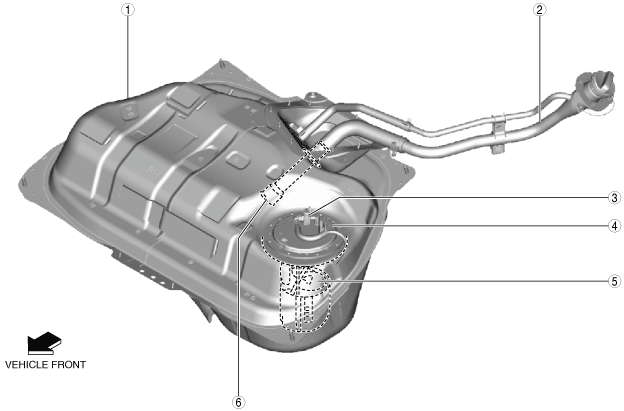

Fuel Tank Side

amxuuw00005159

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See FUEL TANK INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See FUEL PUMP UNIT INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
5	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
6	Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
