CHARGING SYSTEM [WITHOUT i-ELOOP (SKYACTIV-G 1.5, SKYACTIV-G 2.0)]

id0117t21029t0

Outline

• Performs the charge/discharge of the electricity required by the vehicle.

Note

• For details on the generator, DC-DC converter (i-ELOOP) and the capacitor, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

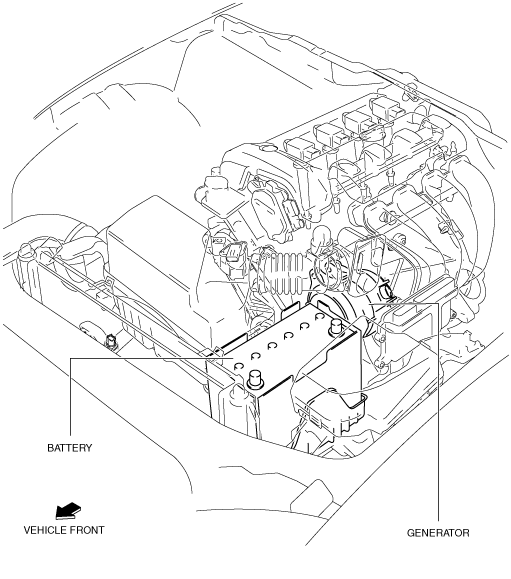

Structural View

amxzzn00000735

Structure

• Consists of the following parts:

Battery	(See BATTERY [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Generator	(See GENERATOR [WITHOUT i-ELOOP (SKYACTIV-G 1.5, SKYACTIV-G 2.0)].)
Charging system warning indication/charging system warning light	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
