CLUTCH PEDAL REMOVAL/INSTALLATION

id051000156700

Caution

•  Do not allow clutch fluid to get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, rinse with water immediately, then wipe the area dry.

Removal

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts (L.H.D.):

(1)  Shift lever knob (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D].)

(2)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(5)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(6)  Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

(7)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(12)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(13)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

(14)  Electrical supply unit (ESU) cover (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)

3.  Disconnect the clutch stroke sensor connector. (with i-stop)

amxzzw00003787

4.  Disconnect the connector on the vehicle wiring harness side for the starter interlock switch.

amxzzw00004490

5.  Remove the clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION.)

6.  Remove the starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION.)

7.  Remove the brake pedal. (R.H.D.) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)

8.  Disconnect the clutch pipe No.1 from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION.)

9.  Disconnect the clutch reserve hose from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION.)

10.  Remove in the order shown in the figure.

L.H.D.

amxzzw00004491

R.H.D.

amxzzw00004492

1	Nut
2	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION.)
3	Clutch pedal
4	Pedal pad

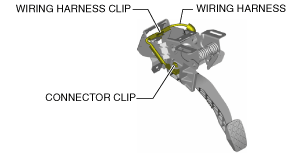

11.  Detach the clips and remove the wiring harness.

amxuuw00004866

Installation

1.  Install the wiring harness.

amxuuw00004866

2.  Install using the procedure shown in the figure.

L.H.D.

amxzzw00004020

R.H.D.

amxzzw00004021

1	Pedal pad
2	Clutch pedal
3	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION.)
4	Nut

3.  Connect the clutch reserve hose to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION.)

4.  Connect the clutch pipe No.1 to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION.)

5.  Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING.)

6.  Inspect the clutch pedal height, and verify that the clutch pedal is installed correctly. (See CLUTCH PEDAL INSPECTION.)

7.  Install the brake pedal. (R.H.D.) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)

8.  Install a new starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION.)

9.  Install a new clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION.)

10.  Connect the connector on the vehicle wiring harness side for the starter interlock switch.

amxzzw00004490

11.  Connect the clutch stroke sensor connector. (with i-stop)

amxzzw00003787

12.  Install the following parts (L.H.D.):

(1)  Electrical supply unit (ESU) cover (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION.)

(2)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

(3)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(4)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(5)  Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

(10)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(11)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(12)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(13)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(14)  Shift lever knob (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D].)

13.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

14.  Fully depress the clutch pedal, and verify that the engine starts.
