VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [SJ6A-EL]

id051311252700

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

•  Do not damage the VSS.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

3.  Remove the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION.)

4.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

5.  Remove the parking brake lever boot panel. (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

6.  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

7.  Remove the front console panel. (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

8.  Remove the front console component. (See FRONT CONSOLE REMOVAL/INSTALLATION.)

9.  Disconnect the connector and wiring harness clip.

amxuuw00002845

10.  Place a clean rag behind the engine so that the engine does not contact the rear housing when it is tilted.

amxuuw00004812

11.  Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION.)

12.  Disconnect the control rod from the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

13.  Remove the tunnel member.

amxuuw00003817

14.  Disconnect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

15.  Disconnect the TWC from the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

16.  Suspend the TWC using a cable as shown in the figure.

amxuuw00002847

17.  Remove the power plant frame. (See POWER PLANT FRAME REMOVAL [M66M-D].)

18.  Tilt the transmission while being careful not to allow parts on the back of the engine to contact the vehicle body.

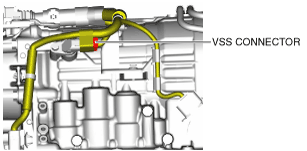

19.  Disconnect the VSS connector.

amxuuw00003529

20.  Remove the VSS.

amxuuw00003531

21.  Install the VSS.

22.  Connect the VSS connector.

amxuuw00003529

23.  Install the power plant frame. (See POWER PLANT FRAME INSTALLATION [M66M-D].)

24.  Remove the tunnel member temporarily.

amxuuw00003817

25.  Connect the TWC to the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

26.  Connect the HO2S connector. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

27.  Install the tunnel member.

amxuuw00003818

28.  Connect the control rod from the selector lever component. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

29.  Install the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION.)

30.  Connect the connector and wiring harness clip.

amxuuw00002845

31.  Install the front console component. (See FRONT CONSOLE REMOVAL/INSTALLATION.)

32.  Install the front console panel. (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)

33.  Install the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

34.  Install the parking brake lever boot panel. (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

35.  Install the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

36.  Install the shift panel component. (See SHIFT PANEL REMOVAL/INSTALLATION.)

37.  Install the selector lever knob. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

38.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
