COOLING DUCT REMOVAL/INSTALLATION
id071100808000
L.H.D.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (2) Shift lever knob (MT)
- (3) Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (4) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (5) Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
- (6) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (7) Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
- (8) Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)

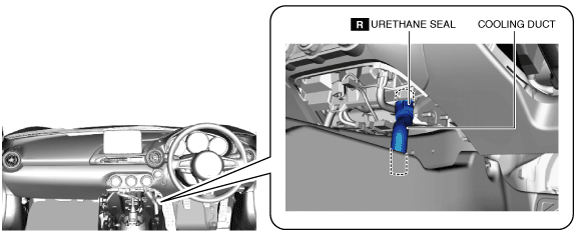

3. Remove the urethane seal.
4. Remove the cooling duct.
5. Install in the reverse order of removal.
R.H.D.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (2) Shift lever knob (MT)
- (3) Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (4) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (5) Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)
- (6) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (7) Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION.)
- (8) Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (9) Dashboard bracket (See DASHBOARD REMOVAL.) (See DASHBOARD INSTALLATION.)
3. Remove the urethane seal.
4. Remove the cooling duct.
5. Install in the reverse order of removal.
