AIR SEAL COWL UP REMOVAL/INSTALLATION

id091000799800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(2)  Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Energy-absorbing form (front side) (with energy-absorbing form) (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION.)

(5)  Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)

(6)  Front bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

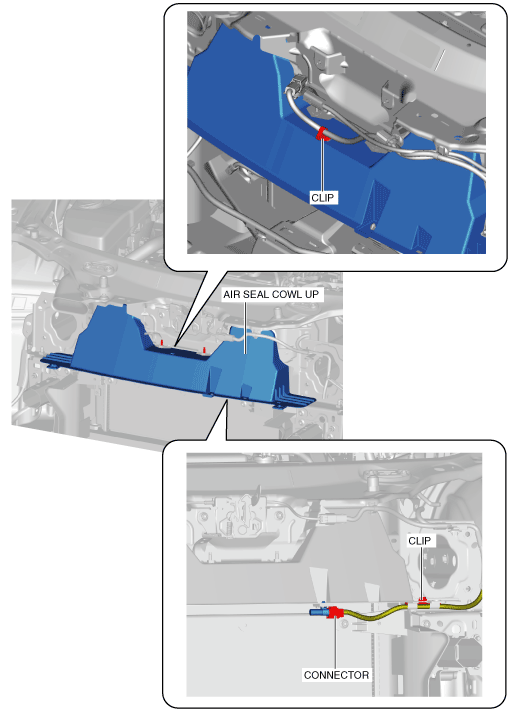

L.H.D.

amxuuw00003125

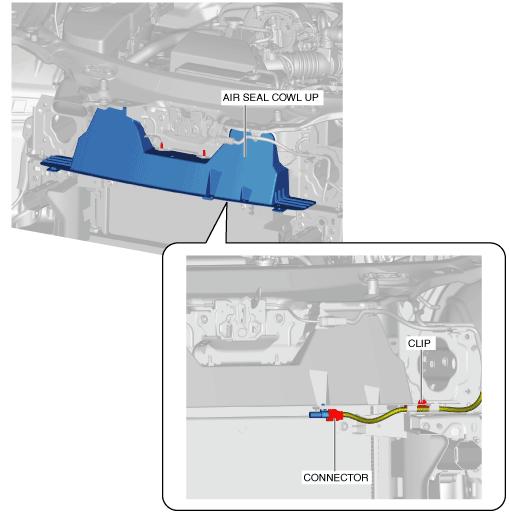

R.H.D.

amxzzw00003857

4.  Remove the wiring harness clip.

5.  Remove the screws.

amxuuw00003126

6.  Remove the air seal cowl up.

7.  Install in the reverse order of removal.
