HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION

id091900814100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

3.  Remove the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION.)

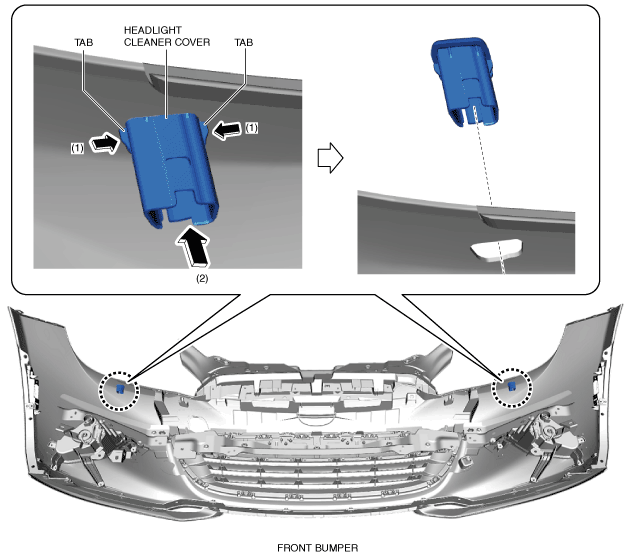

4.  While pressing the headlight cleaner cover tabs in the direction of arrows (1) shown in the figure, push the headlight cleaner cover in the direction of arrow (2) to detach the headlight cleaner cover tabs from the front bumper.

amxzzw00003267

5.  Remove the headlight cleaner cover.

6.  Install in the reverse order of removal.
