ENGINE DISASSEMBLY/ASSEMBLY [MZ-CD 1.4 DI Turbo]

id0110b8800500

Caution

•  Block the removed area using a clean rag so that foreign material or water does not penetrate.

1.  Remove the oil filler cap.

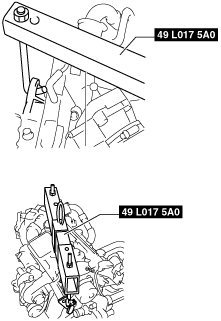

2.  Set the SST as shown in the figure.

am2zzw00003263

3.  Hang the engine and transaxle using the SST, and then take it down from the engine jack.

am2zzw00003264

4.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

5.  Remove the fuel filter. (See FUEL FILTER REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

6.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

7.  Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)

8.  Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [B65M-R (MZ-CD 1.4 DI Turbo)].)

9.  Remove the pressure plate and clutch disc. (See CLUTCH UNIT REMOVAL/INSTALLATION [B65M-R].)

10.  Remove the turbocharger and exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

11.  Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

12.  Remove the oil pressure switch. (See OIL PRESSURE INSPECTION [MZ-CD 1.4 DI Turbo].)

13.  Remove the fuel hose.

14.  Remove the water bypass hose.

15.  Remove the EGR pipe, EGR cooler and EGR valve. (See EGR VALVE REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

16.  Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)

17.  Remove in the order indicated in the table.

18.  Install in the reverse order of removal.

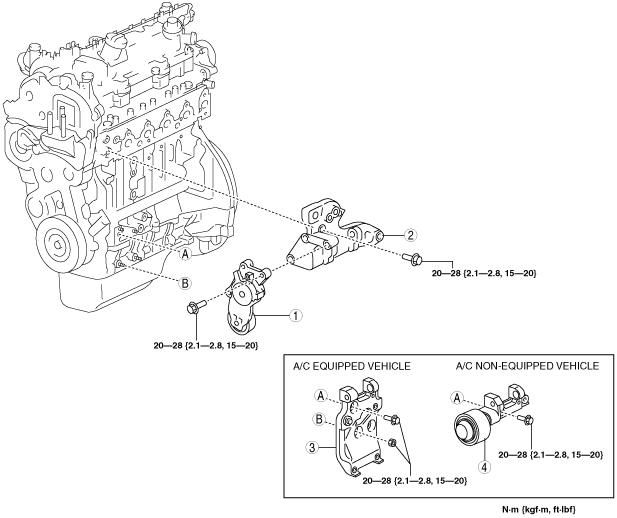

am2zzw00003067

1	Drive belt auto tensioner
2	Generator bracket
3	A/C compressor bracket (A/C equipped vehicle)
4	Idler pulley (A/C non-equipped vehicle)
