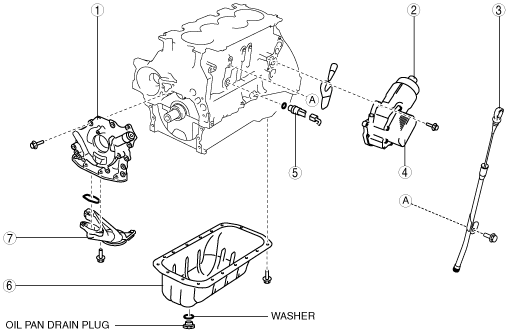

LUBRICATION SYSTEM LOCATION INDEX [MZ-CD 1.4 DI Turbo]

id0111d4800100

am2zzw00003139

1	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
2	Oil filter (See OIL FILTER REPLACEMENT [MZ-CD 1.4 DI Turbo].)
3	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZ-CD 1.4 DI Turbo]) (See ENGINE OIL REPLACEMENT [MZ-CD 1.4 DI Turbo])
4	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
5	Oil pressure switch (See OIL PRESSURE INSPECTION [MZ-CD 1.4 DI Turbo].)
6	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
7	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
