FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000405200
Except AutoAlliance (AAT) Thailand Manufactured Vehicles
Standard type
1. Remove the front fog light. (see FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Remove the radiator grille. (see RADIATOR GRILLE REMOVAL/INSTALLATION)
3. Disassemble in the order indicated in the table.

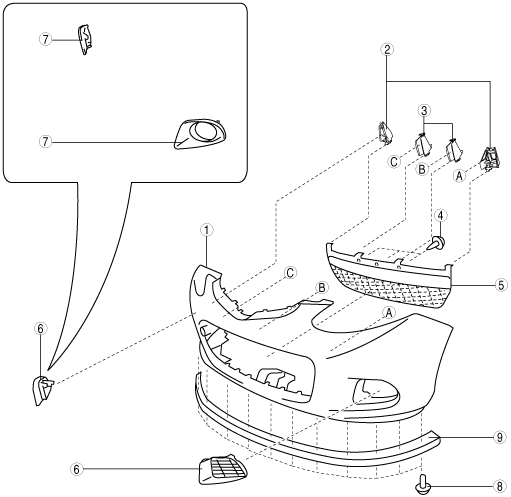

am2zzw00001607
|
|
1
|
Front bumper face
|
|
2
|
Bracket
|
|
3
|
Front bumper retainer
|
|
4
|
Screw
|
|
5
|
Front bumper mesh
|
|
6
|
Fog light hole cover (Vehicles without front fog light)
|
|
7
|
Front fog light cover (Vehicles with front fog light)
|
|
8
|
Rivet
|
|
9
|
Airdam skirt
|
4. Assemble in the reverse order of disassembly.
Sports type
1. Remove the front fog light. (see FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Remove the radiator grille. (see RADIATOR GRILLE REMOVAL/INSTALLATION)
3. Disassemble in the order indicated in the table.

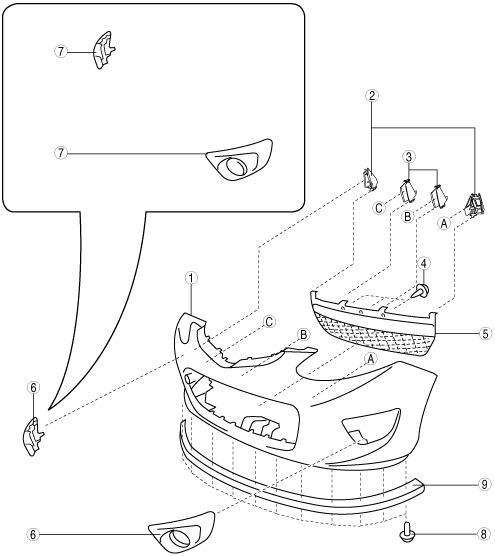

am2zzw00002577
|
|
1
|
Front bumper face
|
|
2
|
Bracket
|
|
3
|
Front bumper retainer
|
|
4
|
Screw
|
|
5
|
Front bumper mesh
|
|
6
|
Fog light hole cover (Vehicles without front fog light)
|
|
7
|
Front fog light cover (Vehicles with front fog light)
|
|
8
|
Rivet
|
|
9
|
Airdam skirt
|
4. Assemble in the reverse order of disassembly.
AutoAlliance (AAT) Thailand Manufactured Vehicles
Standard type
1. Remove the front fog light. (Vehicles with front fog light) (see FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Disassemble in the order indicated in the table.
am2zzw00004438
|
|
1
|
Fastener A
|
|
2
|
Screw B
|
|
3
|
Radiator grille reinforcement
|
|
4
|
Screw C
|
|
5
|
Bracket
|
|
6
|
Screw D
|
|
7
|
Front bumper mesh
|
|
8
|
Fog light hole cover (Vehicles without front fog light)
|
|
9
|
Front fog light cover (Vehicles with front fog light)
|
|
10
|
Rivet
|
|
11
|
Airdam skirt
|
|
12
|
Ornament
|
|
13
|
Front bumper face
|
3. Assemble in the reverse order of disassembly.
Sports type
1. Remove the front fog light. (see FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Disassemble in the order indicated in the table.

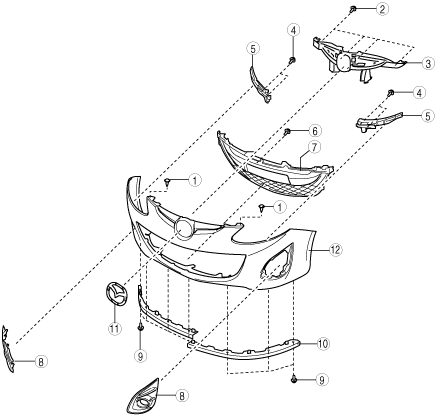

am2zzw00004439
|
|
1
|
Fastener A
|
|
2
|
Screw B
|
|
3
|
Radiator grille reinforcement
|
|
4
|
Screw C
|
|
5
|
Bracket
|
|
6
|
Screw D
|
|
7
|
Front bumper mesh
|
|
8
|
Front fog light cover
|
|
9
|
Rivet
|
|
10
|
Airdam skirt
|
|
11
|
Ornament
|
|
12
|
Front bumper face
|
3. Assemble in the reverse order of disassembly.
