FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION [5HB]

id0914004458d4


L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (driver's seat) (See FRONT SEAT REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See FRONT SEAT REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
(2)  Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(5)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

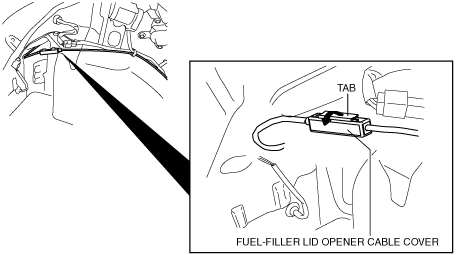

3.  Open the fuel-filler lid opener cable cover.

am2zzw00003458

4.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener cable cover.

am2zzw00003459

5.  Flip over the floor mat and remove the cable from the fuel-filler lid opener lever.

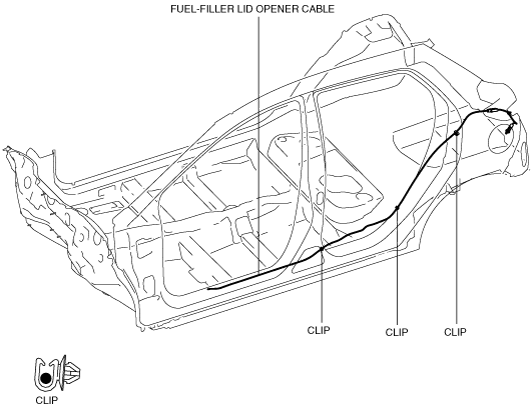

am2zzw00000653

6.  Remove the fuel-filler lid opener cable.

am2zzw00000654

7.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (Driver's seat) (See FRONT SEAT REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See FRONT SEAT REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
(2)  Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(5)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Open the fuel-filler lid opener cable cover.

am2zzw00003458

4.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener cable cover.

am2zzw00003459

5.  Flip over the floor mat and remove the cable from the fuel-filler lid opener lever.

am2zzw00000655

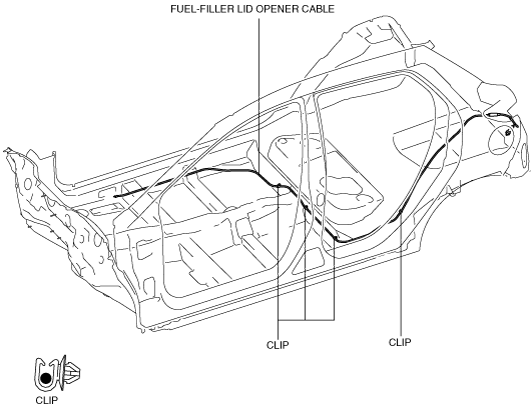

6.  Remove the fuel-filler lid opener cable.

am2zzw00000712

7.  Install in the reverse order of removal.
