REAR PACKAGE TRIM REMOVAL/INSTALLATION [4SD]

id0917008028a3

1.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

3.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)

4.  Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Pull out the left and right rear seat belts from the slit areas of the rear package trim.

am2ccw00000162

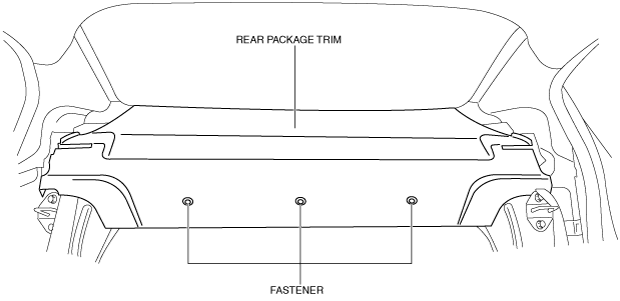

6.  Remove the fasteners.

am2ccw00000163

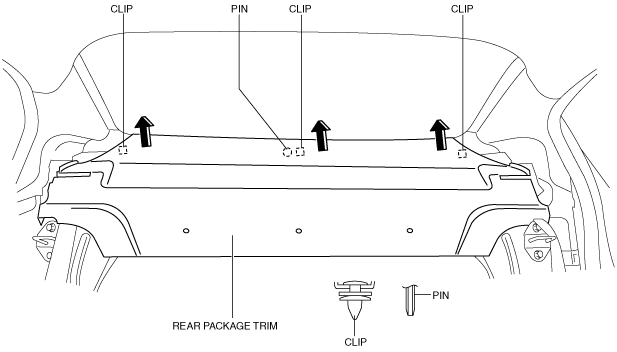

7.  Lift up the position shown in the figure in the direction of the arrow and remove the clips and pin.

am2ccw00000164

8.  Slide the rear package trim in the direction shown by the arrow in the figure and remove the pins from the body.

am2ccw00000165

9.  Remove the rear package trim.

10.  Install in the reverse order of removal.
