EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0116q1803700

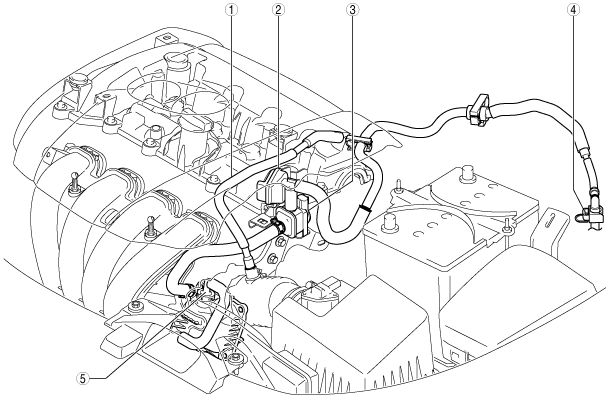

Engine Compartment Side

am2zzw00011937

1	Ventilation hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
2	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CATCH TANK INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Exhaust System Side

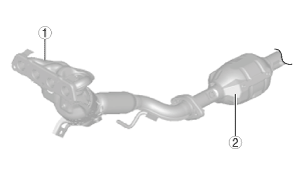

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

am2zzw00011938

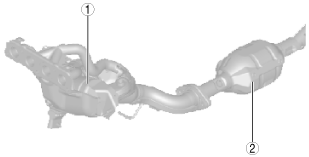

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

am2zzw00011939

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

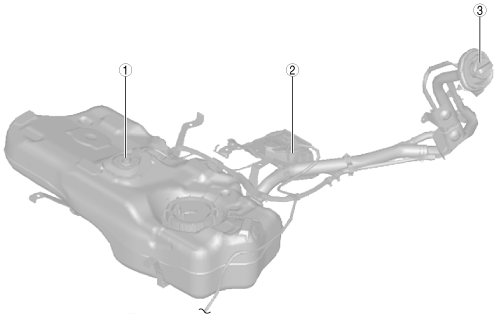

Fuel Tank Side

am2zzw00011940

1	Rollover valve (check valve) (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CHECK VALVE INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
3	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
