STARTING SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

STARTING SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0119q3105200

Outline

• A coaxial reduction type starter has been adopted.

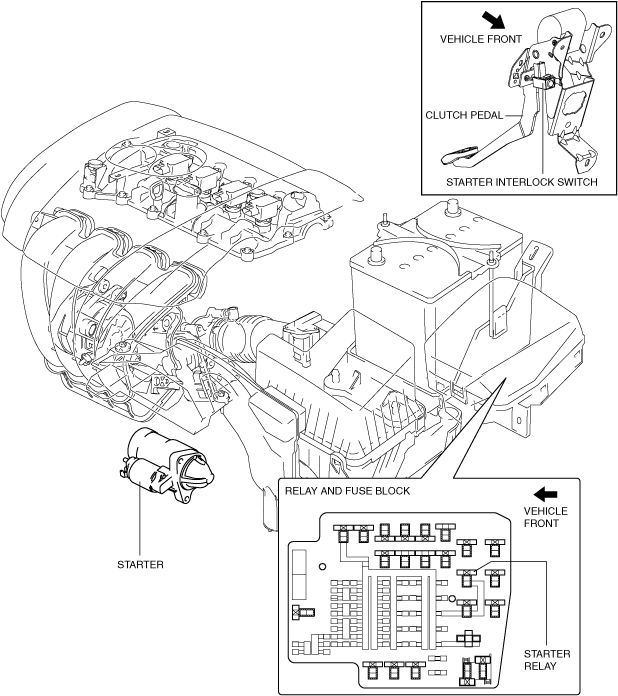

Structural View

am2zzn00004985

Structure

• Consists of the following parts:

Starter

(See STARTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Starter relay

(See STARTER RELAY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Starter interlock switch (MTX)

(See STARTER INTERLOCK SWITCH [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
