FRONT DOOR CHECKER REMOVAL/INSTALLATION

id091100520400

1.  Fully close the front door glass.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Power window main switch (Driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(2)  Power window subswitch (Passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

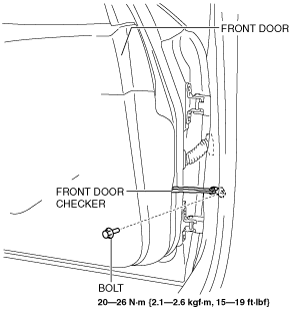

4.  Remove the bolt.

am2zzw00008887

5.  Remove the bolts.

am2zzw00008888

6.  Pull out the front door checker from the front speaker installation hole.

7.  Install in the reverse order of removal.
