BRAKE LIGHT UNIT REMOVAL/INSTALLATION
id091800400000
4SD
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (3) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (4) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (5) High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
- (6) Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

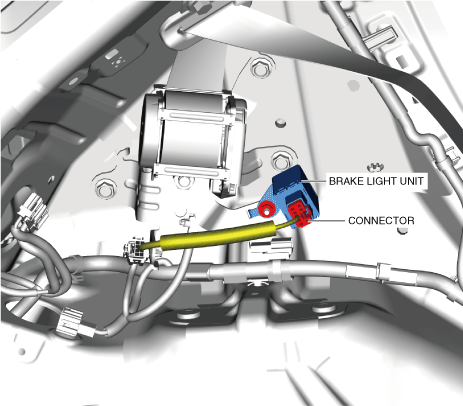

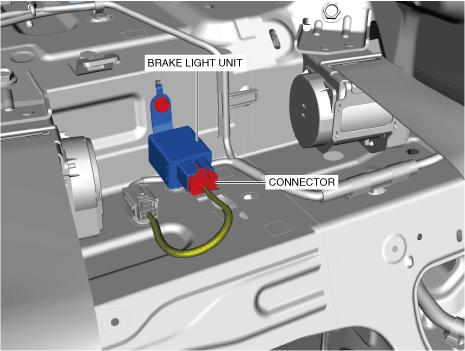

3. Disconnect the connector.

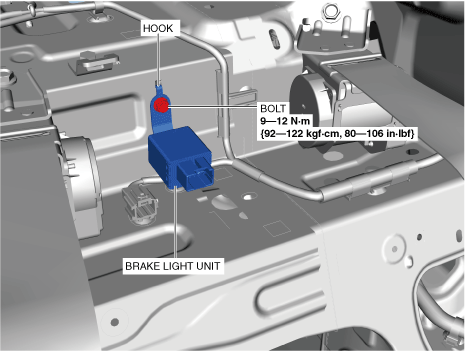

4. Remove the bolt.
5. Pull out the hook from the body and remove the brake light unit.
6. Install in the reverse order of removal.
5HB
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
- (2) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (3) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (6) Rear seat belt lower anchor installation bolt (LH) (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (7) Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (9) C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
3. Disconnect the connector.

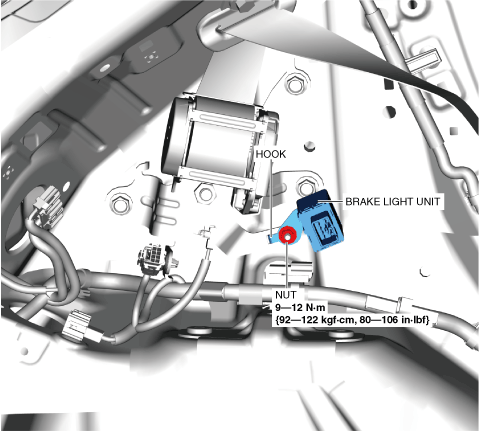

4. Remove the nut.
5. Pull out the hook from the body and remove the brake light unit.
6. Install in the reverse order of removal.
