FUEL SYSTEM LOCATION INDEX [ZY]

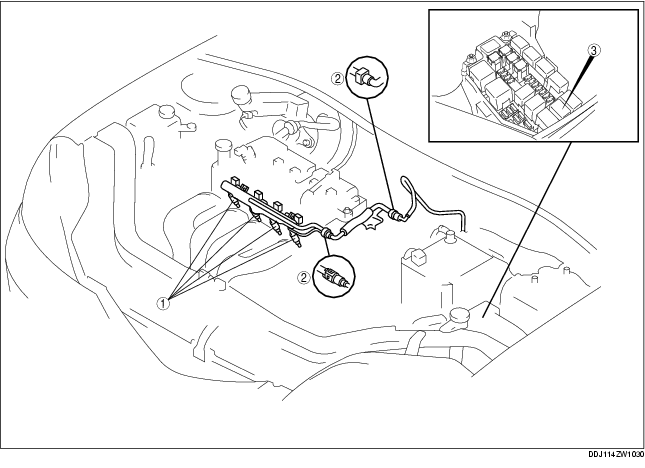

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [ZY].) (See FUEL INJECTOR INSPECTION [ZY].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZY].)
3	Fuel pump relay

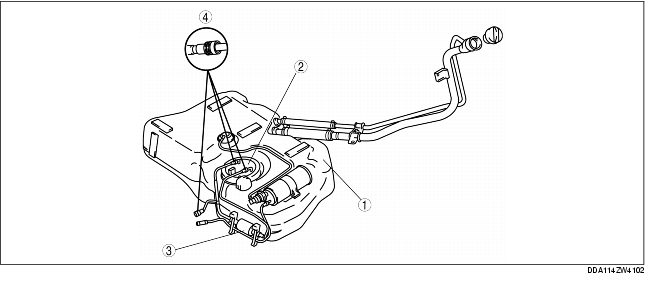

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [ZY].) (See FUEL TANK INSPECTION [ZY].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [ZY].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [ZY].) (See FUEL PUMP UNIT INSPECTION [ZY].)
3	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [ZY].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZY].)

Engine Compartment Side
