EMISSION SYSTEM LOCATION INDEX [ZY]

id0116008037c0

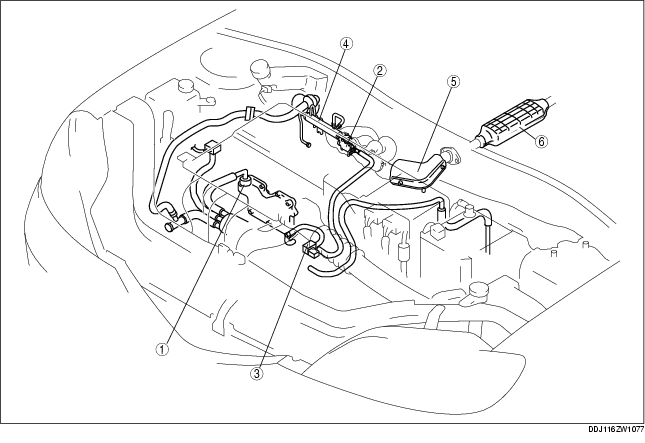

Engine Compartment Side


1	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [ZY].)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [ZY].) (See EGR VALVE INSPECTION [ZY].)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [ZY].) (See PURGE SOLENOID VALVE INSPECTION [ZY].)
4	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [ZY].)
5	WU-TWC
6	TWC

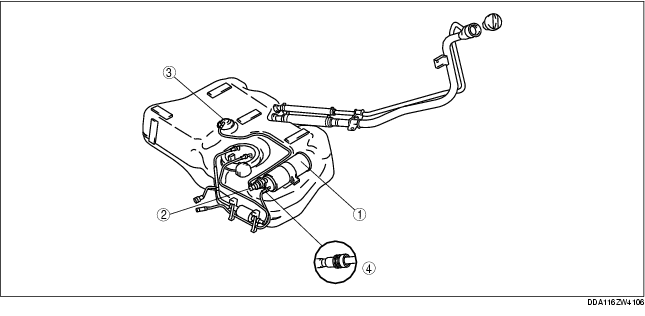

1	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [ZY].) (See CHARCOAL CANISTER INSPECTION [ZY].)
2	Evaporative gas check valve (two-way) (See EVAPORATIVE GAS CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [ZY].) (See EVAPORATIVE GAS CHECK VALVE (TWO-WAY) INSPECTION [ZY].)
3	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [ZY].) (See ROLLOVER VALVE INSPECTION [ZY].)
4	Quick release (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZY].)
