STEP
|
INSPECTION
|
ACTION
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Bulletins and/or on-line repair information availability.
• Is any related repair Information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
3
|

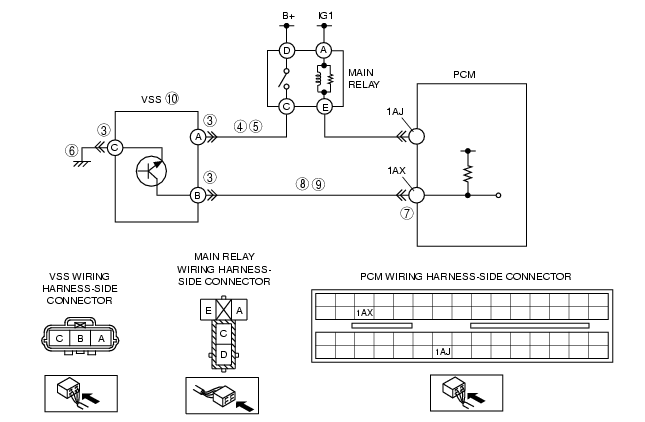

INSPECT VSS CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch to the LOCK position.
• Disconnect the VSS connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the pin or connector, then go to Step 11.
|
4
|
INSPECT VSS POWER CIRCUIT FOR OPEN CIRCUIT
• Verify that the VSS connector is disconnected.
• Turn the ignition switch to the ON position (engine off).
• Inspect the voltage between VSS terminal A (wiring harness-side) and ground.
• Is the voltage B+?
|
Yes
|
Go to Step 6.
|
No
|
Go to the next step.
|
5
|
INSPECT VSS POWER CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch to the LOCK position.
• Inspect for continuity between VSS terminal A (wiring harness-side) and ground.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to Step 11.
|
6
|
INSPECT VSS GROUND CIRCUIT FOR OPEN CIRCUIT
• Verify that the VSS connector is disconnected.
• Inspect for continuity between VSS (wiring harness-side) terminal C and ground.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to Step 11.
|
7
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the pin or connector, then go to Step 11.
|
8
|
INSPECT VEHICLE SPEED SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Disconnect the PCM connector and VSS connector.
• Inspect for continuity between VSS terminal B and PCM terminal 1AX.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to Step 11.
|
9
|
INSPECT VEHICLE SPEED SIGNAL CIRCUIT FOR SHORT TO GROUND
• Verity that the VSS connector and PCM connector are disconnected.
• Inspect for continuity between PCM terminal 1AX and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to the next step.
|
No
|
Replace the VSS, then go to the next step.
|
10
|
INSPECT VEHICLE SPEED SENSOR
• Inspect the VSS.
• Is VSS normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the VSS, then go to Step 11.
|
11
|
VERIFY TROUBLESHOOTING OF DTC P0720 COMPLETED
• Make sure to reconnect all the disconnected connectors.
• Clear the DTC from the memory using the WDS or equivalent.
• Warm up engine.
• Drive the vehicle under the following conditions for 4.5 s or more while monitoring PIDs.
-
- Engine coolant temp (ECT PID): 60 °C {140 °F} or more
-
- Drive in D or M range
-
- Frequency of input/turbine speed sensor: 800 Hz or more
• Is the PENDING CODE present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
No concern is detected. Go to the next step.
|
12
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
No
|
DTC troubleshooting completed.
|
