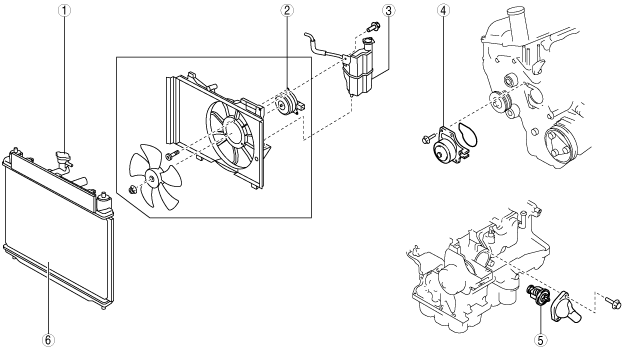

COOLING SYSTEM LOCATION INDEX [ZJ, ZY]

id011219800100

am2zzw00001689

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [ZJ, ZY].)
2	Cooling fan motor (See FAN MOTOR REMOVAL/INSTALLATION [ZJ, ZY].) (See FAN MOTOR INSPECTION [ZJ, ZY].)
3	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [ZJ, ZY].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [ZJ, ZY].)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION [ZJ, ZY].)
5	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [ZJ, ZY].) (See THERMOSTAT INSPECTION [ZJ, ZY].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [ZJ, ZY].) (See ENGINE COOLANT REPLACEMENT [ZJ, ZY].) (See ENGINE COOLANT LEAKAGE INSPECTION [ZJ, ZY].) (See RADIATOR REMOVAL/INSTALLATION [ZJ, ZY].)
