INTAKE-AIR SYSTEM LOCATION INDEX [ZJ, ZY]

id0113a8801700

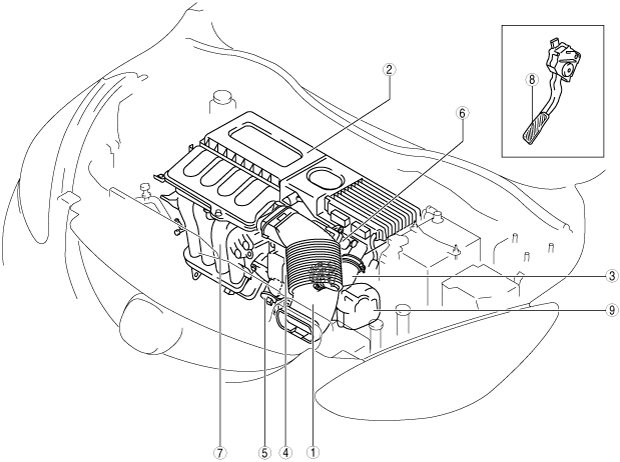

am2zzw00003728

1	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)
2	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].) (See AIR CLEANER ELEMENT INSPECTION [ZJ, ZY].)
3	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)
4	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].) (See THROTTLE BODY INSPECTION [ZJ, ZY].)
5	Variable intake air shutter valve actuator (With variable intake air system) (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [ZJ, ZY].) (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [ZJ, ZY].)
6	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [ZJ, ZY].) (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [ZJ, ZY].)
7	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].) (See INTAKE MANIFOLD VACUUM INSPECTION [ZJ, ZY].)
8	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [ZJ, ZY].)
9	Resonance chamber (With resonance chamber) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY].)
