DSC LOCATION INDEX

id041500802100

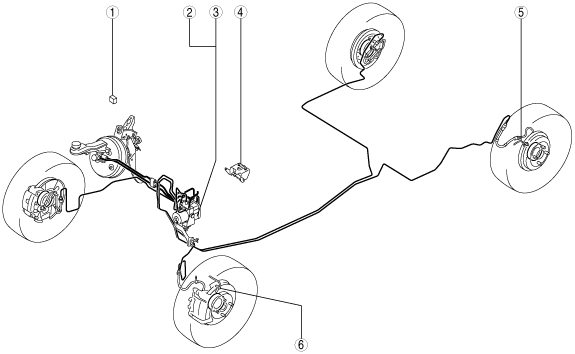

L.H.D.

am2zzw00001312

1	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
2	DSC HU/CM (See DSC SYSTEM INSPECTION.) (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC HU/CM INSPECTION.)
3	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
4	Combined sensor (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
5	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
6	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

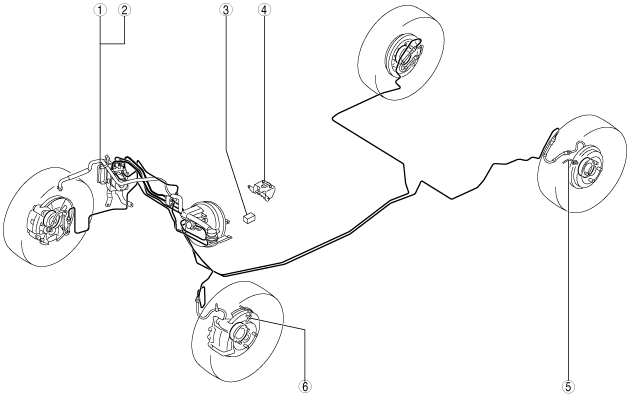

R.H.D.

am2zzw00001313

1	DSC HU/CM (See DSC SYSTEM INSPECTION.) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
4	Combined sensor (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.) (See DSC SENSOR INITIALIZATION PROCEDURE.)
5	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
6	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
