CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]
id0740a1807800
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (2) Boot panel (See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
- (3) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (4) Front console (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (7) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (8) Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

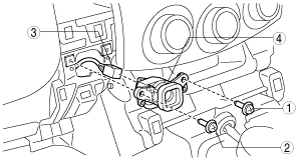

3. Remove in the order indicated in the table.
|
1
|
Screw A
|
|
2
|
Screw B
|
|
3
|
Connector
|
|
4
|
Cabin temperature sensor
|
4. Install in the reverse order of removal.
