DTC B1087:83/B1087:86/B1087:87/B1087:88 [BCM]

id0902f5340200

Malfunction Location

• DTC B1087:83 communication error with rain sensor

• DTC B1087:86 error signal from rain sensor

• DTC B1087:87 no response from rain sensor

• DTC B1087:88 rain sensor BUS off

Detection Condition

• Communication error between rain sensor and BCM

Possible Causes

• Connection malfunction with connector

• Open circuit in wiring harness between rain sensor terminal C and BCM terminal 7U

• Short to ground or power supply in wiring harness between rain sensor terminal C and BCM terminal 7U

• Rain sensor malfunction

• BCM malfunction

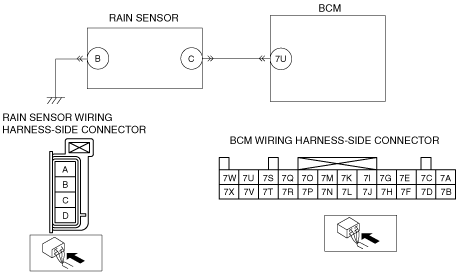

System Wiring Diagram

am2zzw00002300

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch to AUTO.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Are DTCs B1087:83, B1087:86, B1087:87, B1087:88 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY RAIN SENSOR CONNECTOR CONDITION

•  Disconnect the negative and positive battery cables.

•  Disconnect the rain sensor connector (RH).

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY RAIN SENSOR GROUND CIRCUIT CONDITION

•  Inspect for continuity between rain sensor terminal B and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

4

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

5

VERIFY WIRING HARNESS BETWEEN RAIN SENSOR AND BCM FOR SHORT TO GROUND

•  Inspect for continuity between BCM terminal 7U and body ground.

•  Is there continuity?

Yes

Repair or replace the related wiring harness, then go to the final step.

No

Go to the next step.

6

VERIFY BETWEEN RAIN SENSOR AND BCM FOR OPEN CIRCUIT

•  Inspect for continuity between rain sensor terminal C and BCM terminal 7U.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the related wiring harness, then go to the final step.

7

VERIFY WIRING HARNESS BETWEEN RAIN SENSOR AND BCM FOR SHORT TO POWER SUPPLY

•  Measure the voltage between BCM terminal 7U and body ground.

•  Is there B+?

Yes

Repair or replace the related wiring harness, then go to the final step.

No

Go to the next step.

8

VERIFY TROUBLESHOOTING COMPLETED

•  Connect all the connectors.

•  Connect the battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch to AUTO.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Are DTCs B1087:83, B1087:86, B1087:87, B1087:88 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the windshield wiper switch to AUTO. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Are DTCs B1087:83, B1087:86, B1087:87, B1087:88 displayed?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	VERIFY RAIN SENSOR CONNECTOR CONDITION • Disconnect the negative and positive battery cables. • Disconnect the rain sensor connector (RH). • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to the final step.
3	VERIFY RAIN SENSOR GROUND CIRCUIT CONDITION • Inspect for continuity between rain sensor terminal B and body ground. • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the related wiring harness, then go to the final step.
4	VERIFY BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to the final step.
5	VERIFY WIRING HARNESS BETWEEN RAIN SENSOR AND BCM FOR SHORT TO GROUND • Inspect for continuity between BCM terminal 7U and body ground. • Is there continuity?	Yes	Repair or replace the related wiring harness, then go to the final step.
5		No	Go to the next step.
6	VERIFY BETWEEN RAIN SENSOR AND BCM FOR OPEN CIRCUIT • Inspect for continuity between rain sensor terminal C and BCM terminal 7U. • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the related wiring harness, then go to the final step.
7	VERIFY WIRING HARNESS BETWEEN RAIN SENSOR AND BCM FOR SHORT TO POWER SUPPLY • Measure the voltage between BCM terminal 7U and body ground. • Is there B+?	Yes	Repair or replace the related wiring harness, then go to the final step.
7		No	Go to the next step.
8	VERIFY TROUBLESHOOTING COMPLETED • Connect all the connectors. • Connect the battery cable. • Clear DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the windshield wiper switch to AUTO. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Are DTCs B1087:83, B1087:86, B1087:87, B1087:88 displayed?	Yes	Replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
8		No	DTC troubleshooting completed.
