DTC B1D35:11 [BCM]

id0902f5389700

Malfunction Location

• Hazard warning switch circuit malfunction

Detection Condition

• Short to ground in wiring harness between hazard warning switch and BCM for 10s or more

Possible Causes

• DTC inspection is performed with hazard warning switch on

• Connection malfunction with connector

• Short to ground in wiring harness between hazard warning switch terminal C and BCM terminal 6Q

• Hazard warning switch malfunction

• BCM malfunction

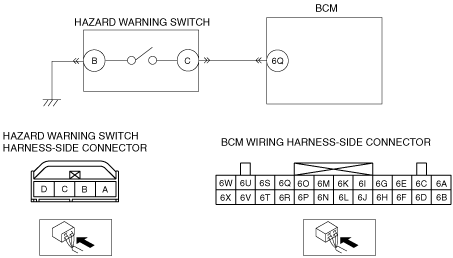

System Wiring Diagram

am2zzw00002275

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the hazard warning switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1D35:11 displayed?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

VERIFY HAZARD WARNING SWITCH CONNECTOR CONDITION

•  Disconnect the negative battery cable.

•  Disconnect the hazard warning switch connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

3

VERIFY HAZARD WARNING SWITCH CONDITION

•  Remove the hazard warning switch.
(See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

•  Inspect hazard warning switch.
(See HAZARD WARNING SWITCH INSPECTION.)

•  Is the hazard warning switch normal?

Yes

Go to the next step.

No

Replace the hazard warning switch, then go to the final step.

(See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

4

VERIFY BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connection condition and wiring harness.

•  Are the connector terminals normal without damage, deformation, corrosion, or disconnection?

Yes

Go to the next step.

No

Repair or replace the connector, then go to the final step.

5

VERIFY WIRING HARNESS BETWEEN HAZARD WARNING SWITCH AND BCM FOR SHORT TO GROUND

•  Inspect for a continuity between BCM terminal 6Q and body ground.

•  Is there continuity?

Yes

Repair or replace the related wiring harness, then go to the final step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING COMPLETED

•  Connect all the connectors.

•  Connect the battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the hazard warning switch off.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is DTC B1D35:11 displayed?

Yes

Replace the BCM.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the hazard warning switch off. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is DTC B1D35:11 displayed?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	VERIFY HAZARD WARNING SWITCH CONNECTOR CONDITION • Disconnect the negative battery cable. • Disconnect the hazard warning switch connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to the final step.
3	VERIFY HAZARD WARNING SWITCH CONDITION • Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) • Inspect hazard warning switch. (See HAZARD WARNING SWITCH INSPECTION.) • Is the hazard warning switch normal?	Yes	Go to the next step.
3		No	Replace the hazard warning switch, then go to the final step. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)
4	VERIFY BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connection condition and wiring harness. • Are the connector terminals normal without damage, deformation, corrosion, or disconnection?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to the final step.
5	VERIFY WIRING HARNESS BETWEEN HAZARD WARNING SWITCH AND BCM FOR SHORT TO GROUND • Inspect for a continuity between BCM terminal 6Q and body ground. • Is there continuity?	Yes	Repair or replace the related wiring harness, then go to the final step.
5		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Connect all the connectors. • Connect the battery cable. • Clear DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the hazard warning switch off. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is DTC B1D35:11 displayed?	Yes	Replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
6		No	DTC troubleshooting completed.
