FRONT DOOR HINGE REMOVAL/INSTALLATION [3HB]
id091100810206
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION)
- (2) Front side turn light (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.)
- (3) Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
- (4) Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
- (5) Side step molding (vehicles with side step molding) (See SIDE STEP MOLDING REMOVAL [3HB].) (See SIDE STEP MOLDING INSTALLATION [3HB].)
- (6) Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
- (7) Front door (See FRONT DOOR REMOVAL/INSTALLATION [3HB].)

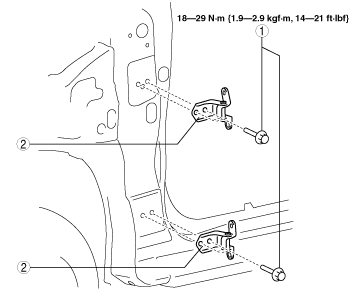

3. Remove in the order indicated in the table.
|
1
|
Bolt
|
|
2
|
Front door hinge
|
4. Install in the reverse order of removal.
