POWER WINDOW MAIN SWITCH INSPECTION

id091200419000

1. Turn the ignition switch to the ON position.

2. Verify that the door glass (driver’s side) can be operated for approx. 43 s after the ignition switch is turned to the LOCK position.

• If the door glass (driver’s side) cannot be operated for approx. 43 s after the ignition switch is turned to the LOCK position, of if the door glass (driver’s side) can still be operated after approx. 43 s, replace the power window main switch.

3. Disconnect the negative battery cable.

4. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

5. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

6. Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)

7. Connect the power window main switch connector.

8. Connect the negative battery cable.

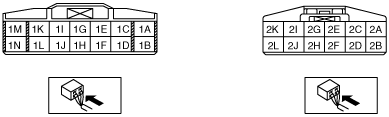

9. Measure the voltage at each terminal (except terminals 1A and 1B).

• If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item(s) and related wiring harnesses.

10. If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

am2zzw00003828

Terminal Voltage Table (Reference)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)/Continuity

Inspection item(s)

1A

Sensor ground

Power window motor (driver’s side)

Under any condition: Inspect for continuity to ground

Continuity detected

•  Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harness

1B

GND

Body ground

Under any condition: Inspect for continuity to ground

Continuity detected

•  Related wiring harness

1C

Close signal

Power window subswitch (RR)

Door glass (RR) closing

B+

•  Power window motor (RR) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (RR) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

1D

Pulse 1

Power window motor (driver’s side)

Door glass (driver’s side) operating

Approx. 6

•  Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harness

Door glass (driver’s side) stopped

1.0 or less, or B+

1E

Open signal

Power window subswitch (RR)

Door glass (RR) opening

B+

•  Power window motor (RR) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (RR) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

1F

Power supply

Power window motor (driver’s side)

Ignition switch at ON

B+

•  Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harness

1G

Open signal

Power window subswitch (LR)

Door glass (LR) opening

B+

•  Power window motor (LR) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (LR) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

1H

Pulse 2

Power window motor (driver’s side)

Door glass (driver’s side) operating

Approx. 6

•  Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window main switch (driver’s side) (See POWER WINDOW MAIN SWITCH INSPECTION.)

•  Related wiring harness

Door glass (driver’s side) stopped

1.0 or less, or B+

1I

Close signal

Power window subswitch

Door glass (LR) operating

B+

•  Power window motor (LR) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (LR) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

1J

Close signal

Power window motor (driver’s side)

Door glass (driver’s side) closing

B+

•  Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harness

1K

Door signal

Power window control module

Any door is open

1.0 or less

•  BCM

•  Related wiring harness

All door is closing

B+

1L

Open signal

Power window motor (driver’s side)

Door glass (driver’s side) opening

B+

•  Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.)

•  Related wiring harness

1M

Power supply

P/W 30 A fuse

Ignition switch at ON

B+

•  P/W 30 A fuse

•  Related wiring harness

Ignition switch is off

1.0 or less

1N

Power supply

P/W 20 A fuse

Under any condition

B+

•  P/W 20 A fuse

•  Related wiring harness

2A^*1

Open signal

Power window subswitch (Passenger’s Side)

Door glass (Passenger’s Side) opening

B+

•  Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

2B^*1

Close signal

Power window subswitch (Passenger’s Side)

Door glass (Passenger’s Side) closing

B+

•  Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

2K^*2

Open signal

Power window subswitch (Passenger’s Side)

Door glass (Passenger’s Side) opening

B+

•  Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

2L^*2

Close signal

Power window subswitch (Passenger’s Side)

Door glass (Passenger’s Side) closing

B+

•  Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.)

•  Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.)

•  Related wiring harness

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)/Continuity	Inspection item(s)
1A	Sensor ground	Power window motor (driver’s side)	Under any condition: Inspect for continuity to ground	Continuity detected	• Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harness
1B	GND	Body ground	Under any condition: Inspect for continuity to ground	Continuity detected	• Related wiring harness
1C	Close signal	Power window subswitch (RR)	Door glass (RR) closing	B+	• Power window motor (RR) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (RR) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
1D	Pulse 1	Power window motor (driver’s side)	Door glass (driver’s side) operating	Approx. 6	• Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harness
Door glass (driver’s side) stopped	1.0 or less, or B+
1E	Open signal	Power window subswitch (RR)	Door glass (RR) opening	B+	• Power window motor (RR) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (RR) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
1F	Power supply	Power window motor (driver’s side)	Ignition switch at ON	B+	• Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harness
1G	Open signal	Power window subswitch (LR)	Door glass (LR) opening	B+	• Power window motor (LR) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (LR) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
1H	Pulse 2	Power window motor (driver’s side)	Door glass (driver’s side) operating	Approx. 6	• Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.) • Power window main switch (driver’s side) (See POWER WINDOW MAIN SWITCH INSPECTION.) • Related wiring harness
Door glass (driver’s side) stopped	1.0 or less, or B+
1I	Close signal	Power window subswitch	Door glass (LR) operating	B+	• Power window motor (LR) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (LR) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
1J	Close signal	Power window motor (driver’s side)	Door glass (driver’s side) closing	B+	• Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harness
1K	Door signal	Power window control module	Any door is open	1.0 or less	• BCM • Related wiring harness
All door is closing	B+
1L	Open signal	Power window motor (driver’s side)	Door glass (driver’s side) opening	B+	• Power window motor (driver’s side) (See POWER WINDOW MOTOR INSPECTION.) • Related wiring harness
1M	Power supply	P/W 30 A fuse	Ignition switch at ON	B+	• P/W 30 A fuse • Related wiring harness
Ignition switch is off	1.0 or less
1N	Power supply	P/W 20 A fuse	Under any condition	B+	• P/W 20 A fuse • Related wiring harness
2A^*1	Open signal	Power window subswitch (Passenger’s Side)	Door glass (Passenger’s Side) opening	B+	• Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
2B^*1	Close signal	Power window subswitch (Passenger’s Side)	Door glass (Passenger’s Side) closing	B+	• Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
2K^*2	Open signal	Power window subswitch (Passenger’s Side)	Door glass (Passenger’s Side) opening	B+	• Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness
2L^*2	Close signal	Power window subswitch (Passenger’s Side)	Door glass (Passenger’s Side) closing	B+	• Power window motor (Passenger’s Side) (See POWER WINDOW MOTOR INSPECTION.) • Power window subswitch (Passenger’s Side) (See POWER WINDOW SUBSWITCH INSPECTION.) • Related wiring harness

*1 :L.H.D.

*2 :R.H.D.
