HEADLINER REMOVAL/INSTALLATION [3HB]

id0917004583z3

1.  Disconnect the negative battery cable.

2.  Partially peel back the seaming welt.

3.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)

(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(5)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [3HB].)

(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION [3HB].)

(9)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION [3HB].)

(11)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(12)  Rain sensor cover (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

(13)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Disconnect the rain sensor connector (vehicles with auto light / wiper system).

5.  Disconnect the rear window washer hose.

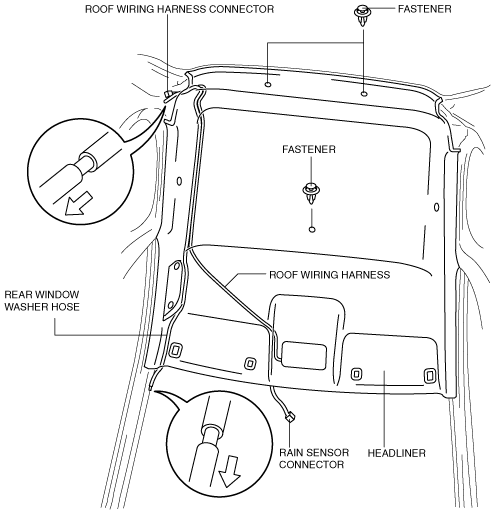

am2zzw00003411

6.  Disconnect the roof wiring harness connector.

7.  Remove the fasteners.

8.  Take the headliner out from the opened liftgate.

am2zzw00003412

9.  Install in the reverse order of removal.
