ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION

id092000812300

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)  Front scuff plate (5HB) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (5HB) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trim (5HB) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  Front seat belt upper anchor installation bolt (5HB) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(8)  B-pillar upper trim (5HB) (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

4.  Partially peel back the seaming welt.

5.  Partially peel back the headliner.

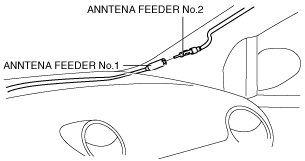

6.  Disconnect antenna feeder No.1.

am2zzw00001595

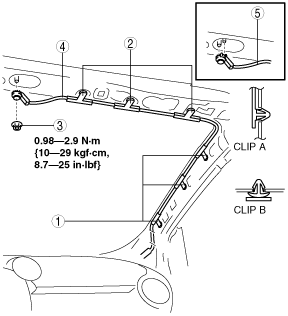

7.  Remove in the order indicated in the table.

am2zzw00002781

1	Crip A
2	Crip B
3	Nut
4	Antenner feeder No.2 (TypeA)
5	Antenner feeder No.2 (TypeB) (See Antenna Feeder No.2 (Type B) Installation Note.)

8.  Install in the reverse order of removal.

Antenna Feeder No.2 (Type B) Installation Note

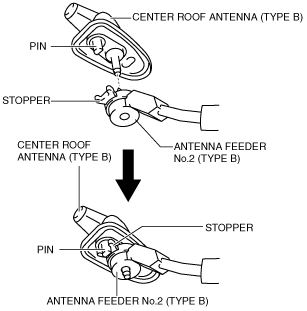

1.  Install the antenna feeder No.2 (Type B) stopper to the pin of the center roof antenna (Type B).

am2zzw00002779
