INSTRUMENTATION/DRIVER INFO. LOCATION INDEX [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)]

id0922004950j5

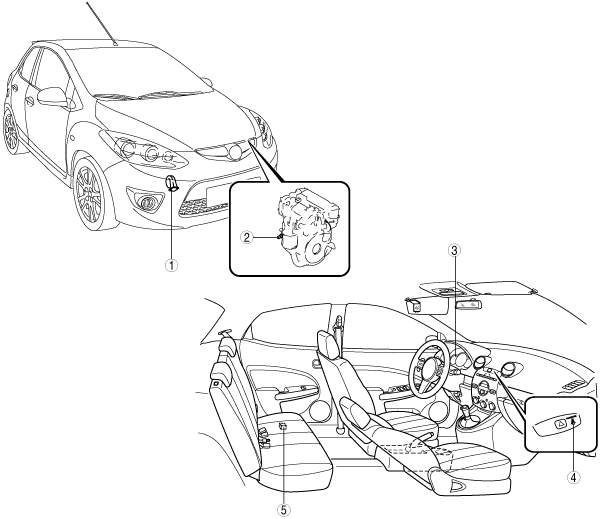

L.H.D.

am2zzw00002641

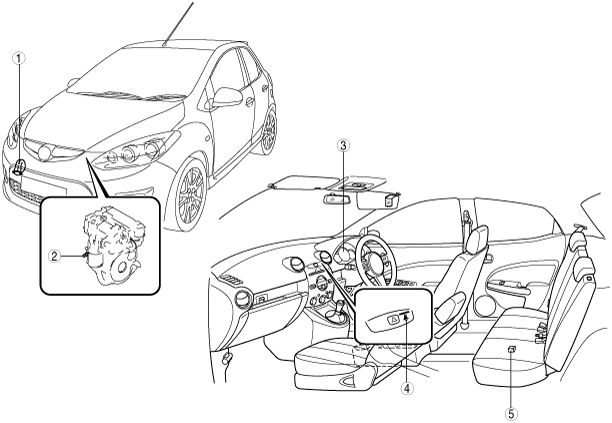

R.H.D.

am2zzw00002642

1	Horn (See HORN REMOVAL/INSTALLATION.)
2	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION.)
3	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See INSTRUMENT CLUSTER CONFIGURATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See INSTRUMENT CLUSTER CUSTOMIZED FUNCTION SETTING PROCEDURE.)
4	Passenger seat belt reminder (See PASSENGER SEAT BELT REMINDER REMOVAL/INSTALLATION.) (See PASSENGER SEAT BELT REMINDER INSPECTION.)
5	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See FUEL GAUGE SENDER UNIT INSPECTION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
