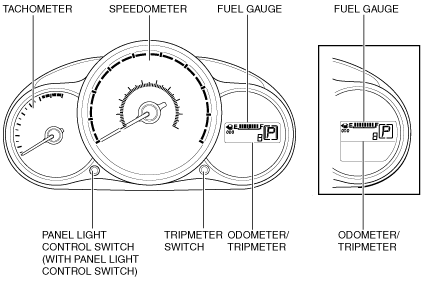

INSTRUMENT CLUSTER STRUCTURAL VIEW
id092200531300
Meters And Gauges
am2zzn00001186
|

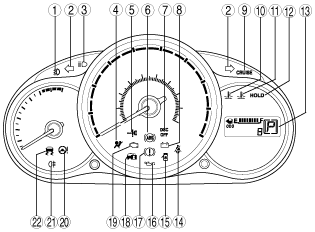

Warning And Indicator Lights
am2zzn00000153
|
|
No. |
Warning and indicator light |
Input signal source |
CAN system |
Description |
Note |
|---|---|---|---|---|---|
|
1
|
Front fog indicator light
|
BCM
|
×
|
When the front fog light illuminates, the front fog indicator light illuminates.
|
With front fog lights
|
|
2
|
Turn indicator light
|
BCM
|
×
|
• Flashes when ignition switch is ON position during turn switch operation.
• Flashes when hazard switch is on.
|
―
|
|
3
|
High-beam indicator light
|
BCM
|
×
|
Illuminates when light switch is at HI position.
|
―
|
|
4
|
Air bag system warning light
|
SAS control module
|
×
|
Illuminates or flashes when SRS air bag system has malfunction.
|
―
|
|
5
|
Keyless indicator light (green)
|
Keyless control module
|
×
|
Illuminates when start knob is pressed.
|
With advanced keyless system
|
|
Keyless warning light (red)
|
Illuminates or flashes when keyless control module has malfunction.
|
||||
|
6
|
ABS warning light
|
ABS HU/CM or DSC HU/CM
|
×
|
Illuminates when ABS system has malfunction.
|
―
|
|
7
|
DSC OFF light
|
DSC HU/CM
|
×
|
If the DSC system is malfunctioning, the DSC OFF light remains Illuminates.
When the DCS OFF switch is pressed to disable, the DCS OFF light illuminates.
|
―
|
|
8
|
Generator warning light
|
PCM
|
×
|
Illuminates when malfunction occurs in charging system-related parts and DTC is stored in PCM.
|
―
|
|
9
|
Cruise main indicator light
|
PCM
|
×
|
Illuminates if the cruise control system is in control status.
|
With cruise control system
|
|
Cruise set indicator light
|
|||||
|
10
|
High engine coolant temperature warning light
|
PCM
|
×
|
Illuminates or flashes when engine coolant temperature is high.
|
―
|
|
11
|
Low engine coolant temperature indicator light
|
PCM
|
×
|
Illuminates when engine coolant temperature is low.
|
―
|
|
12
|
HOLD indicator light
|
PCM
|
×
|
Flashes when transaxle-related DTC is detected.
By switching HOLD switch, illuminates to indicate that it is in HOLD mode.
|
ATX
|
|
13
|
Selector lever position indicator light
|
PCM
|
×
|
Indicates selector lever position.
|
ATX
|
|
14
|
Seat belt warning light
|
SAS control module
|
×
|
When the driver’s seat belt is not fastened, the seat belt warning light illuminates.
|
―
|
|
15
|
Door ajar warning light
|
BCM
|
×
|
Illuminates when door or liftgate is open.
|
―
|
|
16
|
Oil pressure warning light
|
BCM
|
×
|
Illuminates when hydraulic pressure is low.
|
―
|
|
17
|
Brake system warning light
|
ABS HU/CM or DSC HU/CM
|
×
|
• Illuminates when brake system has malfunction.
• Illuminates during parking brake operation
|
―
|
|
18
|
Security light
|
Keyless control module
|
×
|
Illuminates or flashes when immobilizer system has malfunction.
|
With advanced keyless entry and start system
|
|
PCM
|
×
|
With keyless entry system
|
|||
|
19
|
MIL
|
PCM
|
×
|
Illuminates when malfunction occurs in engine control system and DTC is stored in PCM.
|
―
|
|
20
|
EPS (electric power steering) warning light
|
EPS control module
|
×
|
Illuminates or flashes when EPS system has malfunction.
|
―
|
|
21
|
Rear fog indicator light
|
BCM
|
×
|
When the rear fog light illuminates, the rear fog indicator light illuminates.
|
With rear fog lights
|
|
22
|
DSC indicator light
|
DSC HU/CM
|
×
|
• If the DSC system is malfunctioning, the DSC indicator light remains illuminated.
• When the DSC or TCS is operating, the DSC indicator light flashes.
|
―
|
