1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
3
|
INSPECT APP SENSOR CONNECTOR CONDITION
• Switch the ignition to off.
• Disconnect the APP sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
4
|

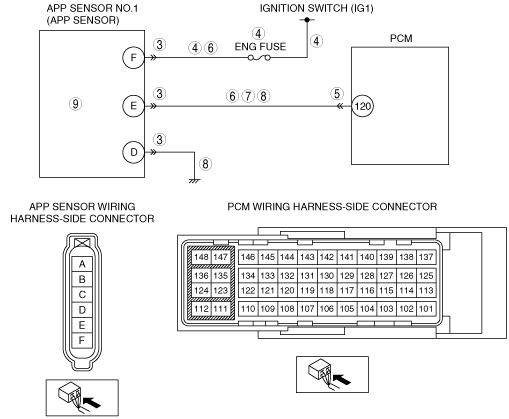

INSPECT APP SENSOR NO.1 POWER SUPPLY CIRCUIT FOR OPEN OR SHORT CIRCUIT
• APP sensor connector is disconnected.
• Switch the ignition to ON (engine off).
• Measure the voltage between APP sensor terminal F (wiring harness-side) and body ground.
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Verify the ENG fuse condition.
• If the fuse is blown:
-
― Repair short to ground in wiring harness between ENG fuse and APP sensor terminal F.
― Replace the ENG fuse.
• If the ENG fuse is normal:
-
― Repair for a possible open circuit.
Then go to Step 10.
|
|
5
|
INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT APP SENSOR NO.1 POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO EACH OTHER
• APP sensor and PCM connectors are disconnected.
• Switch the ignition to off.
• Inspect for continuity between APP sensor terminals F and E (wiring harness-side).
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to each other, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
7
|
INSPECT APP SENSOR NO.1 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• APP sensor and PCM connectors are disconnected.
• Switch the ignition to ON (engine off).
• Measure the voltage at the APP sensor terminal E (wiring harness-side).
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
8
|
INSPECT APP SENSOR NO.1 CIRCUIT FOR OPEN CIRCUIT
• APP sensor and instrument cluster connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side):
-
― APP sensor terminal D and body ground
― APP sensor terminal E and PCM terminal 120
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 10.
|
|
9
|
INSPECT APP SENSOR NO.1
• Reconnect all disconnected connectors.
• Inspect the APP sensor No.1.
• Is there any malfunction?
|
Yes
|
Replace the accelerator pedal, then go to the next step.
|
|
No
|
Go to the next step.
|
|
10
|
VERIFY THAT DTC P2124:00 TROUBLESHOOTING IS COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the after repair procedure.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
