OIL PUMP REMOVAL/INSTALLATION [MZ-CD 1.6]

id011122800600

Warning

•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1.  Disconnect the negative battery cable.

2.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [MZ-CD 1.6].)

3.  Remove the following parts:

(1)  Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)

(2)  Drive belt (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)

(3)  Coolant reserve tank with the hoses and pipes still connected (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZ-CD 1.6].)

4.  Set the cooler hose (LO) out of the way. (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZ-CD 1.6].)

5.  Remove the wiring harness.

6.  Remove the water pipe bracket installation bolt and set the water pipe bracket out of the way.

am2zzw00006308

7.  Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)

8.  Install the No.3 engine mount bracket and No. 3 engine mount rubber. (See TIMING BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)

9.  Remove the front oil seal. (See FRONT OIL SEAL REPLACEMENT [MZ-CD 1.6].)

10.  Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [MZ-CD 1.6].)

11.  Remove the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZ-CD 1.6].)

12.  Remove in the order indicated in the table.

13.  Install in the reverse order of removal.

14.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [MZ-CD 1.6].)

15.  Start the engine and confirm that there is no oil leakage.

•   If there is oil leakage, repair or replace the applicable part.

16.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [MZ-CD 1.6].)

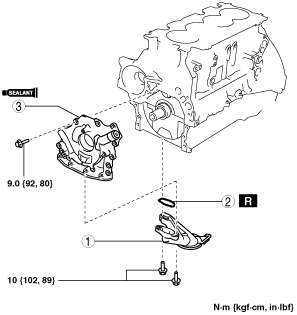

am2zzw00006451

1	Oil strainer
2	O-ring
3	Oil pump (See Oil Pump Installation Note.)

Oil Pump Installation Note

Caution

•  Make sure that the sealer does not enter the lower crankcase and the cylinder block blind holes. Failure to follow this instruction may result in damage to the engine.

•  Install the oil pump before the applied sealant starts to harden.

•  Using bolts with the old seal adhering could cause cracks in the housing.

am3zzw00001417

1.  Clean the mating faces of the lower crankcase and the cylinder block.

2.  When reusing oil pump installation bolts, clean any old sealant from the bolts.

3.  Apply silicone sealant to the cylinder block and the lower crankcase as shown in the figure.

am2zzw00003145

4.  Install the oil pump.
