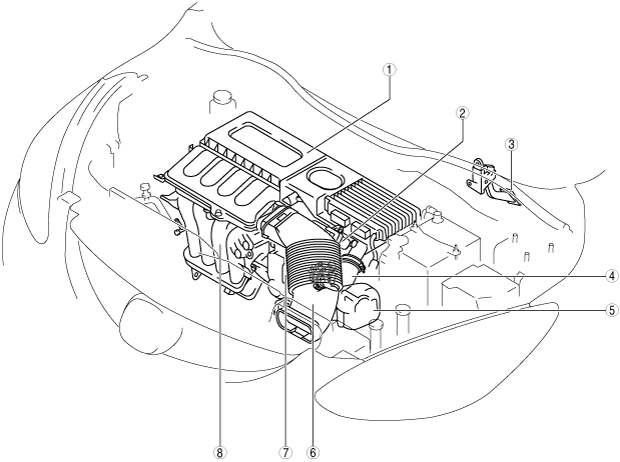

INTAKE-AIR SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id011317801700

am2zzw00005223

1	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See AIR CLEANER ELEMENT INSPECTION [MZR 1.3, MZR 1.5].)
2	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [MZR 1.3, MZR 1.5].)
3	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
4	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
5	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
6	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
7	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See THROTTLE BODY INSPECTION [MZR 1.3, MZR 1.5].)
8	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See INTAKE MANIFOLD VACUUM INSPECTION [MZR 1.3, MZR 1.5].)
