REAR PARKING BRAKE CABLE REMOVAL/INSTALLATION
id041200801300
1. Remove the console. (See REAR CONSOLE REMOVAL/INSTALLATION.)
2. Loosen the adjusting nut shown in the figure only enough that it does not come off.
am2zzw00001256
|
3. Release the parking brake.
4. Remove the TWC or middle pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6].)
5. Remove the insulator No.1 and insulator No.2. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6].)
6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
8. After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION.)

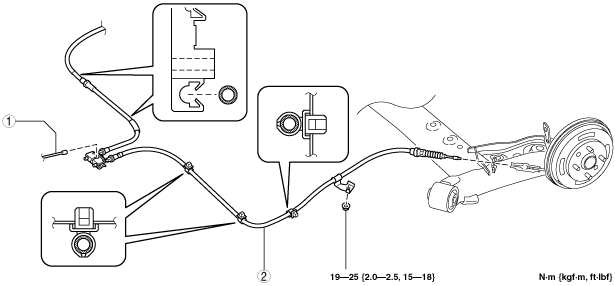

am2zzw00005850
|
|
1
|
Front parking brake cable
|
|
2
|
Rear parking brake cable
|
Rear Parking Brake Cable Removal Note
1. Bend the end cable tab in the direction shown in the figure.
am2zzw00000916
|
2. Move the rear parking brake cable end in the direction shown in the figure and disconnect it from the end cable.
Rear Parking Brake Cable Installation Note
1. Move the rear parking brake cable end in the direction shown in the figure and install it to the end cable.
am2zzw00000917
|
2. Verify that the end cable tab is attached properly to the rear parking brake cable end as shown in the figure.
