COMBINED SENSOR REMOVAL/INSTALLATION

id041500801200

Caution

•  The DSC may not function normally immediately after the combined sensor is replaced. After installation, always perform the initialization procedures for the combined sensor.

•  The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

1.  Perform the following and partially peel back the floor covering.

(1)  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

(2)  Remove the front side trim (RH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Remove the front scuff plate (RH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Remove the rear scuff plate (RH). (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Remove the B-pillar lower trim (RH). (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION.)

(7)  Remove the lower anchor of the front seat belt (RH). (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, perform the combined sensor initialization procedure. (See DSC SENSOR INITIALIZATION PROCEDURE.)

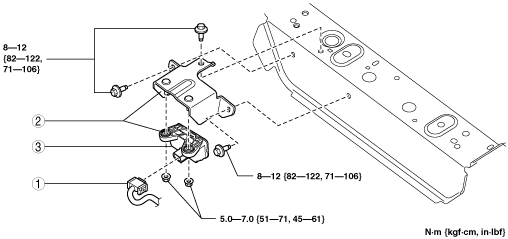

am2zzw00005364

1	Combined sensor connector
2	Combined sensor component
3	Combined sensor
