PRIMARY PULLEY SPEED SENSOR INSPECTION [DJVA-EL]

id051901286600

On-Vehicle Inspection

1. Disconnect the negative battery cable.

2. Disconnect the primary pulley speed sensor connector.

am3zzw00008266

3. Inspect the primary pulley speed sensor using a tester.

am3zzw00008267

• If there is any malfunction, replace the primary pulley speed sensor. (See PRIMARY PULLEY SPEED SENSOR REMOVAL/INSTALLATION [DJVA-EL].)

Primary pulley speed sensor specification

Terminal	Resistance (ohm)
A—B	560—680

Wiring Harness Inspection

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3. Remove the front side garnish. (See FRONT SIDE GARNISH REMOVAL/INSTALLATION.)

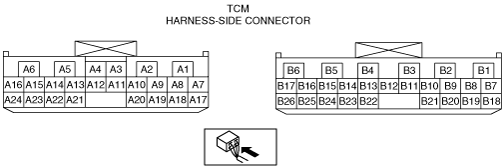

4. Disconnect the TCM connector.

5. Inspect the wiring harness between the primary pulley speed sensor and the TCM using a tester.

• If there is any malfunction, repair or replace the wiring harness.

am3zzw00008268

Primary pulley speed sensor specification
