DTC B10A5:12 [ADVANCED KEYLESS AND START SYSTEM]

id0902e1387600

Description

• Keyless beeper output voltage malfunction

Possible Causes

• Keyless beeper connector or terminals malfunction

• Open circuit in wiring harness between keyless beeper terminal B and body ground

• Keyless beeper malfunction

• Keyless control module connector or terminals malfunction

• Short to ground in wiring harness between keyless beeper terminal A and keyless control module terminal 3K

• Short to power supply in wiring harness between keyless beeper terminal A and keyless control module terminal 3K

• Open circuit in wiring harness between keyless beeper terminal A and keyless control module terminal 3K

• Keyless control module malfunction

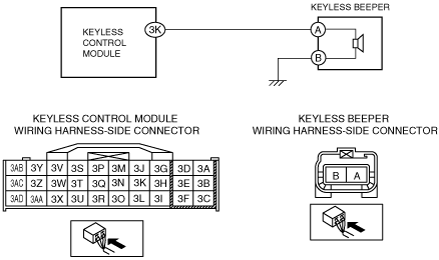

System Wiring Diagram

am2zzw00006103

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT KEYLESS BEEPER CONNECTOR AND TERMINALS

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the keyless beeper connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 8.

No

Go to the next step.

2

INSPECT KEYLESS BEEPER GROUND CIRCUIT FOR OPEN CIRCUIT

•  Verify that the keyless beeper connector is disconnected.

•  Inspect for continuity between the keyless beeper terminal B (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to Step 8.

3

INSPECT KEYLESS BEEPER

•  Inspect the keyless beeper.
(See KEYLESS BEEPER INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is there any malfunction?

Yes

Replace the keyless beeper, then go to Step 8.

(See KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

No

Go to the next step.

4

INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS

•  Disconnect the keyless control module connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 8.

No

Go to the next step.

5

INSPECT KEYLESS BEEPER CIRCUIT FOR SHORT TO GROUND

•  Verify that the keyless beeper and keyless control module connectors are disconnected.

•  Inspect for continuity between keyless beeper terminal A (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Repair or replace the wiring harness for a possible short to ground, then go to Step 8.

No

Go to the next step.

6

INSPECT KEYLESS BEEPER CIRCUIT FOR SHORT TO POWER SUPPLY

•  Verify that the keyless beeper and keyless control module connectors are disconnected.

•  Reconnect the negative battery cable.

•  Turn the ignition switch to the ON position.

•  Measure the voltage at the keyless beeper terminal A (wiring harness-side).

•  Is there any voltage?

Yes

Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.

No

Go to the next step.

7

INSPECT KEYLESS BEEPER CIRCUIT FOR OPEN CIRCUIT

•  Verify that the keyless beeper and keyless control module connectors are disconnected.

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Inspect for continuity between the keyless beeper terminal A (wiring harness-side) and keyless control module terminal 3K (wiring harness-side).

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to the next step.

8

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].)

•  Perform the keyless control module DTC inspection using the M-MDS.
(See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is the same DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the keyless control module.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

Go to the next step.

No

Go to the next step.

9

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [ADVANCED KEYLESS AND START SYSTEM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	INSPECT KEYLESS BEEPER CONNECTOR AND TERMINALS • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the keyless beeper connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 8.
1		No	Go to the next step.
2	INSPECT KEYLESS BEEPER GROUND CIRCUIT FOR OPEN CIRCUIT • Verify that the keyless beeper connector is disconnected. • Inspect for continuity between the keyless beeper terminal B (wiring harness-side) and body ground. • Is there continuity?	Yes	Go to the next step.
2		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 8.
3	INSPECT KEYLESS BEEPER • Inspect the keyless beeper. (See KEYLESS BEEPER INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is there any malfunction?	Yes	Replace the keyless beeper, then go to Step 8. (See KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
3		No	Go to the next step.
4	INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS • Disconnect the keyless control module connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 8.
4		No	Go to the next step.
5	INSPECT KEYLESS BEEPER CIRCUIT FOR SHORT TO GROUND • Verify that the keyless beeper and keyless control module connectors are disconnected. • Inspect for continuity between keyless beeper terminal A (wiring harness-side) and body ground. • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 8.
5		No	Go to the next step.
6	INSPECT KEYLESS BEEPER CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the keyless beeper and keyless control module connectors are disconnected. • Reconnect the negative battery cable. • Turn the ignition switch to the ON position. • Measure the voltage at the keyless beeper terminal A (wiring harness-side). • Is there any voltage?	Yes	Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
6		No	Go to the next step.
7	INSPECT KEYLESS BEEPER CIRCUIT FOR OPEN CIRCUIT • Verify that the keyless beeper and keyless control module connectors are disconnected. • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Inspect for continuity between the keyless beeper terminal A (wiring harness-side) and keyless control module terminal 3K (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].) • Perform the keyless control module DTC inspection using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].) Go to the next step.
8		No	Go to the next step.
9	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS AND START SYSTEM].)
9		No	DTC troubleshooting completed.
