DTC B109F:87 [THEFT-DETERRENT SYSTEM]
id0902g7850200
DESCRIPTION |
Communication error between intruder sensor and theft-deterrent control module |
---|---|
DETECTION CONDITION
|
• Theft-deterrent control module detects the communication error between intruder sensor and theft-deterrent control module.
|
POSSIBLE CAUSE
|
• Intruder sensor connector or terminals malfunction
• Theft-deterrent control module connector or terminals malfunction

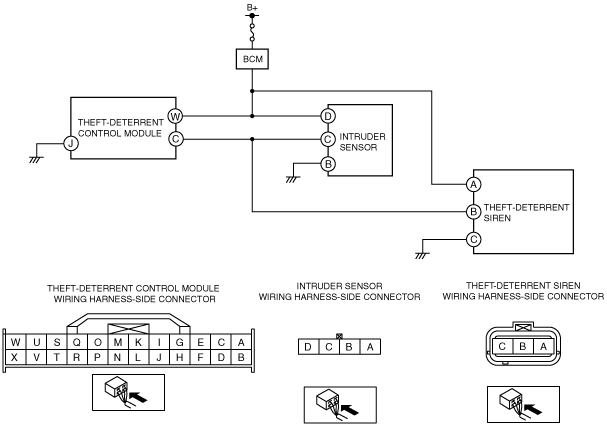

• Short to ground in wiring harness between intruder sensor terminal C and theft-deterrent control module terminal C
• Short to power supply in wiring harness between intruder sensor terminal C and theft-deterrent control module terminal C
• Open circuit in wiring harness between intruder sensor terminal C and theft-deterrent control module terminal C
• Intruder sensor malfunction
• Theft-deterrent control module malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
INSPECT INTRUDER SENSOR CONNECTOR
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable.
• Disconnect the intruder sensor connector.
• Inspect the intruder sensor connector. (Corrosion, damage, and disconnected pins)
• Is there any malfunction?
|
Yes
|
Repair or replace the intruder sensor connector or terminal, then go to Step 7.
|
No
|
Go to the next step.
|
||
2
|
INSPECT THEFT-DETERRENT CONTROL MODULE CONNECTOR
• Disconnect the theft-deterrent control module connector.
• Inspect the theft-deterrent control module connector. (Corrosion, damage, and disconnected pins)
• Is there any malfunction?
|
Yes
|
Repair or replace the theft-deterrent control module connector or terminal, then go to Step 7.
|
No
|
Go to the next step.
|
||
3
|
INSPECT INTRUDER SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
• Verify that the intruder sensor and theft-deterrent control module connectors are disconnected.
• Inspect for continuity between intruder sensor terminal C (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to ground, then go to Step 7.
|
No
|
Go to the next step.
|
||
4
|
INSPECT INTRUDER SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the intruder sensor and theft-deterrent control module connectors are disconnected.
• Reconnect the negative battery cable.
• Turn the ignition switch to the ON position.
• Measure the voltage at the intruder sensor terminal C (wiring harness-side).
• Is there any voltage?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
|
No
|
Go to the next step.
|
||
5
|
INSPECT INTRUDER SENSOR SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Verify that the intruder sensor and theft-deterrent control module connectors are disconnected.
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable.
• Inspect for continuity between intruder sensor terminal C (wiring harness-side) and theft-deterrent control module terminal C (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 7.
|
||
6
|
INSPECT INTRUDER SENSOR
• Inspect the intruder sensor.
(See INTRUDER SENSOR INSPECTION.)
• Is there any malfunction?
|
Yes
|
Replace the intruder sensor, then go to the next step.
|
No
|
Go to the next step.
|
||
7
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Reconnect the negative battery cable.
• Clear DTCs using the M-MDS.
• Perform the theft-deterrent control module DTC inspection using the M-MDS.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the theft-deterrent control module.
Go to the next step.
|
No
|
Go to the next step.
|
||
8
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
No
|
DTC troubleshooting completed.
|
